Figure 8 | Scientific Reports

Figure 8

From: The nomogram based on the 6-lncRNA model can promote the prognosis prediction of patients with breast invasive carcinoma

Figure 8

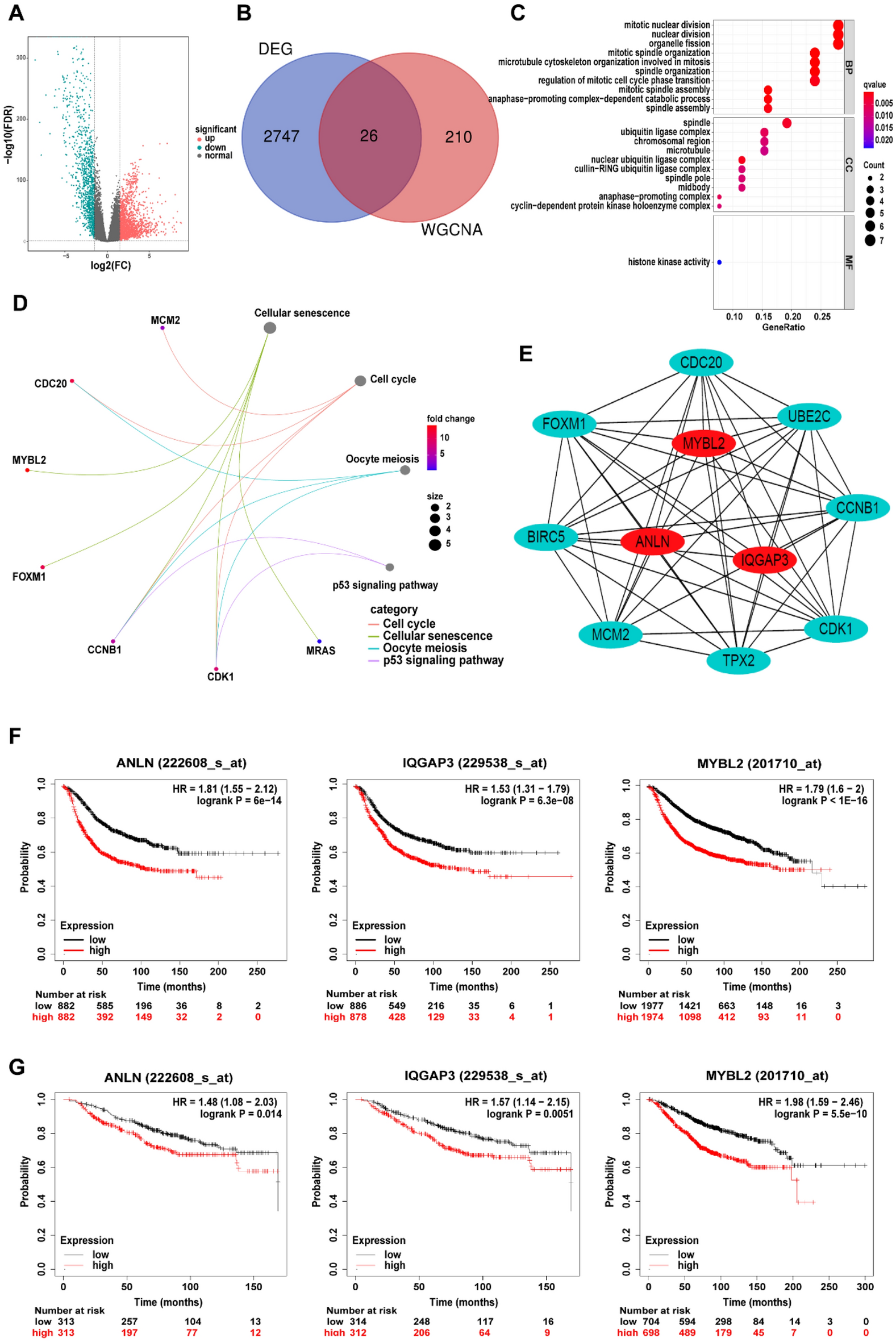

The biological pathways and processes related to the 6-lncRNA model. (A) DEMs volcano map between BRCA tissue and normal breast tissue; (B) Venn diagram of the brown module genes and DEMs; (C) GO enrichment analysis. The biological processes, cellular components and molecular functions of genes are respectively shown. (D) Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis of gene-related signal transduction pathways. (E) Protein interaction network analysis (PPI): use STRING online tool to construct PPI network; "Cytoscape" "cytoHubba" software package The "ClusteringCoefficient" algorithm screens the first three core genes; (F) the recurrence-free survival curve related to the expression of the three core genes; (G) the overall survival curve related to the expression of the three core genes.
