From: ANXA2 is correlated with the molecular features and clinical prognosis of glioma, and acts as a potential marker of immunosuppression

Figure 7

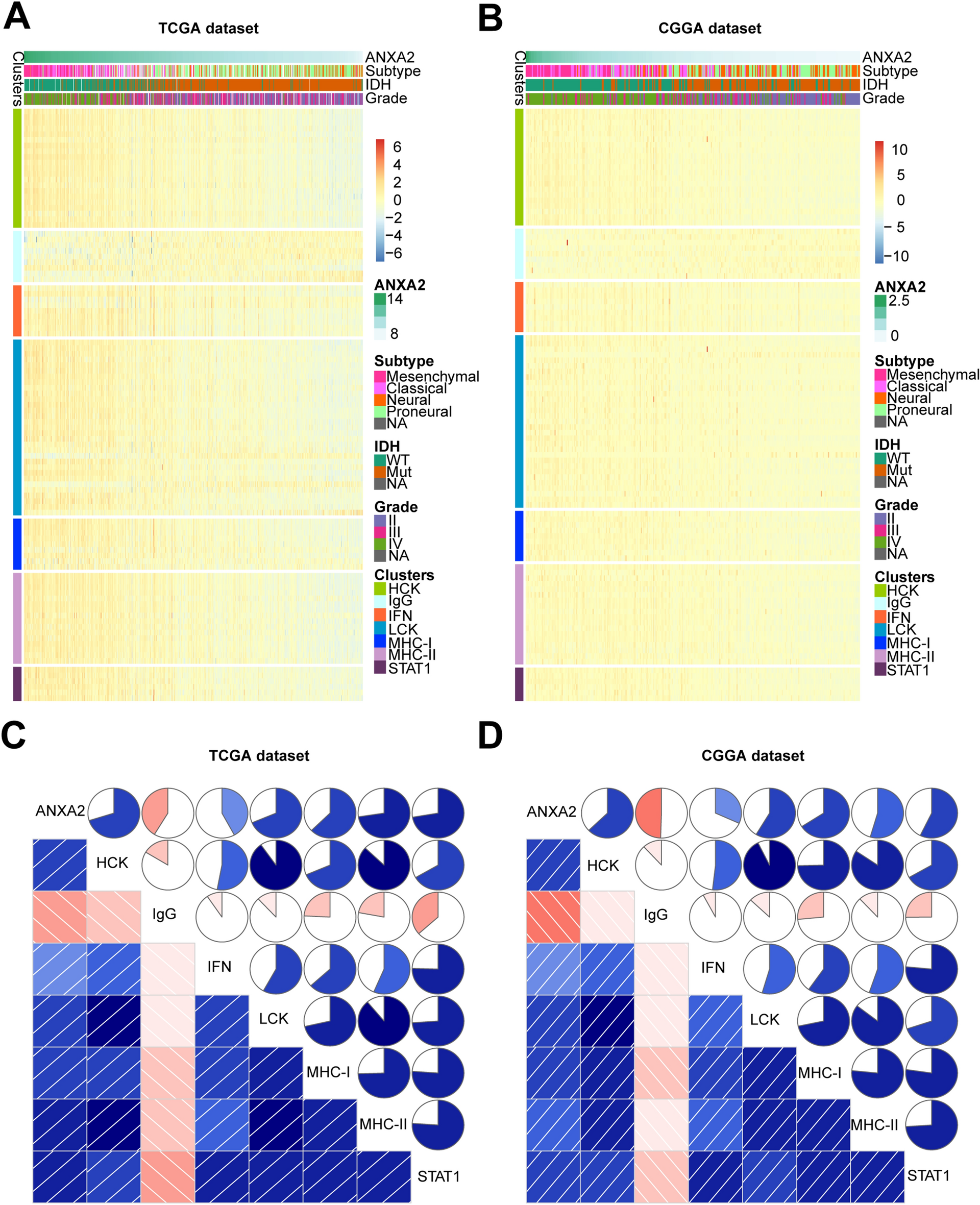

ANXA2-related inflammatory activities in glioma. The relationship between ANXA2 and WHO grade, IDH status, molecular subtypes and inflammatory metagenes are presented as a heatmap in TCGA and CGGA databases (A,B). Correlograms showed the correlation between ANXA2 and inflammatory metagenes (C,D). Blue represents positive correlations, and red represents negative correlations. Color intensity and the size of the circle in pie charts are proportional to the correlation coefficients. The results indicated that ANXA2 was significantly positively correlated with most inflammatory activities.
