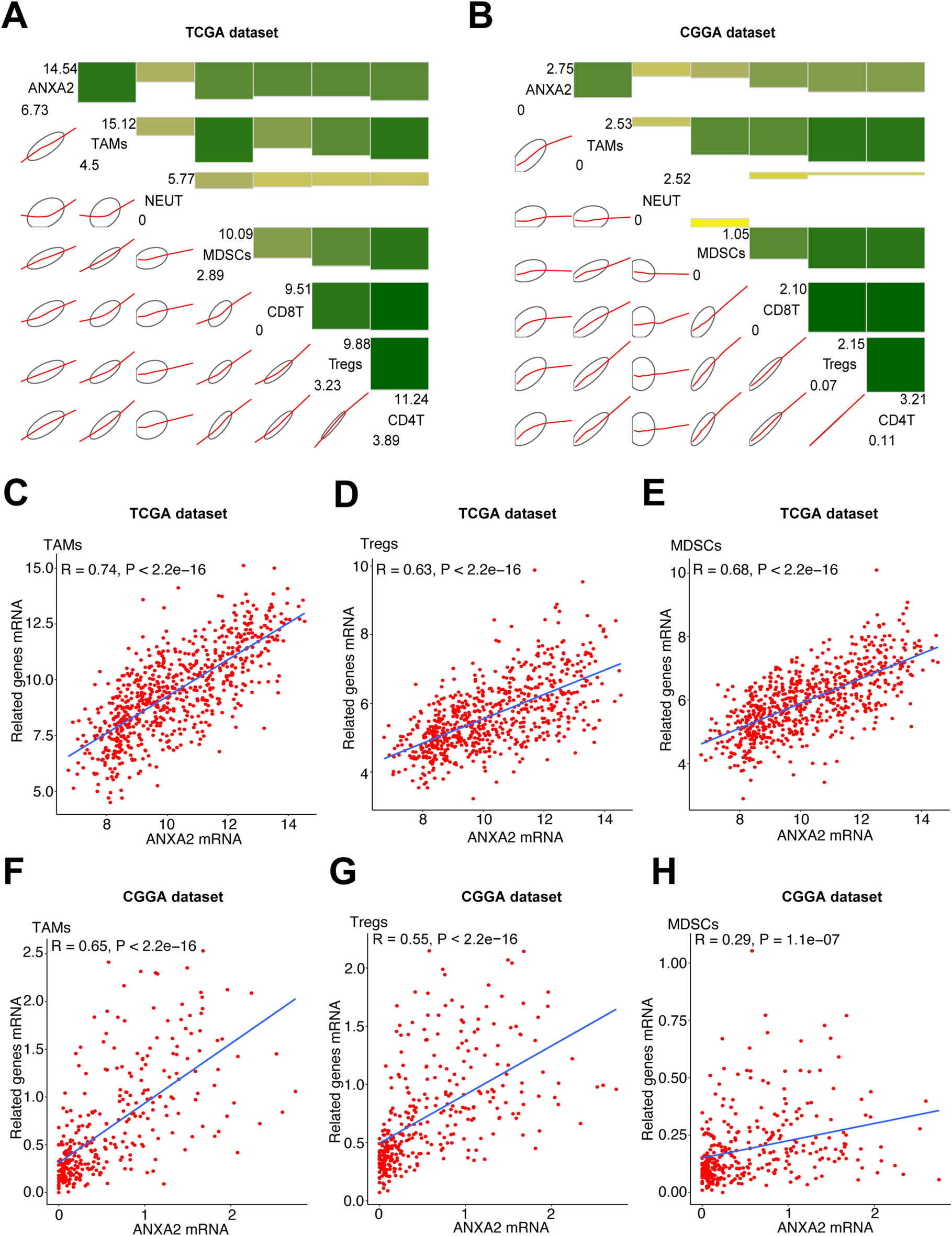

ANXA2-related infiltrating immune cells in glioma. (A,B) Correlograms showing the correlation between ANXA2 and immune cell infiltration level based on both datasets. Green represents positive correlations, and yellow represents negative correlations. Color intensity and the size of the bars and ellipses are proportional to the correlation coefficients. The leading diagonal contains the minimum and maximum values of variables. (C–H) ANXA2 was significantly positively correlated with TAMS, Tregs and MDSCs in both datasets. Each point represents a glioma sample. A regression line was fitted to the dot plot.
