Figure 3

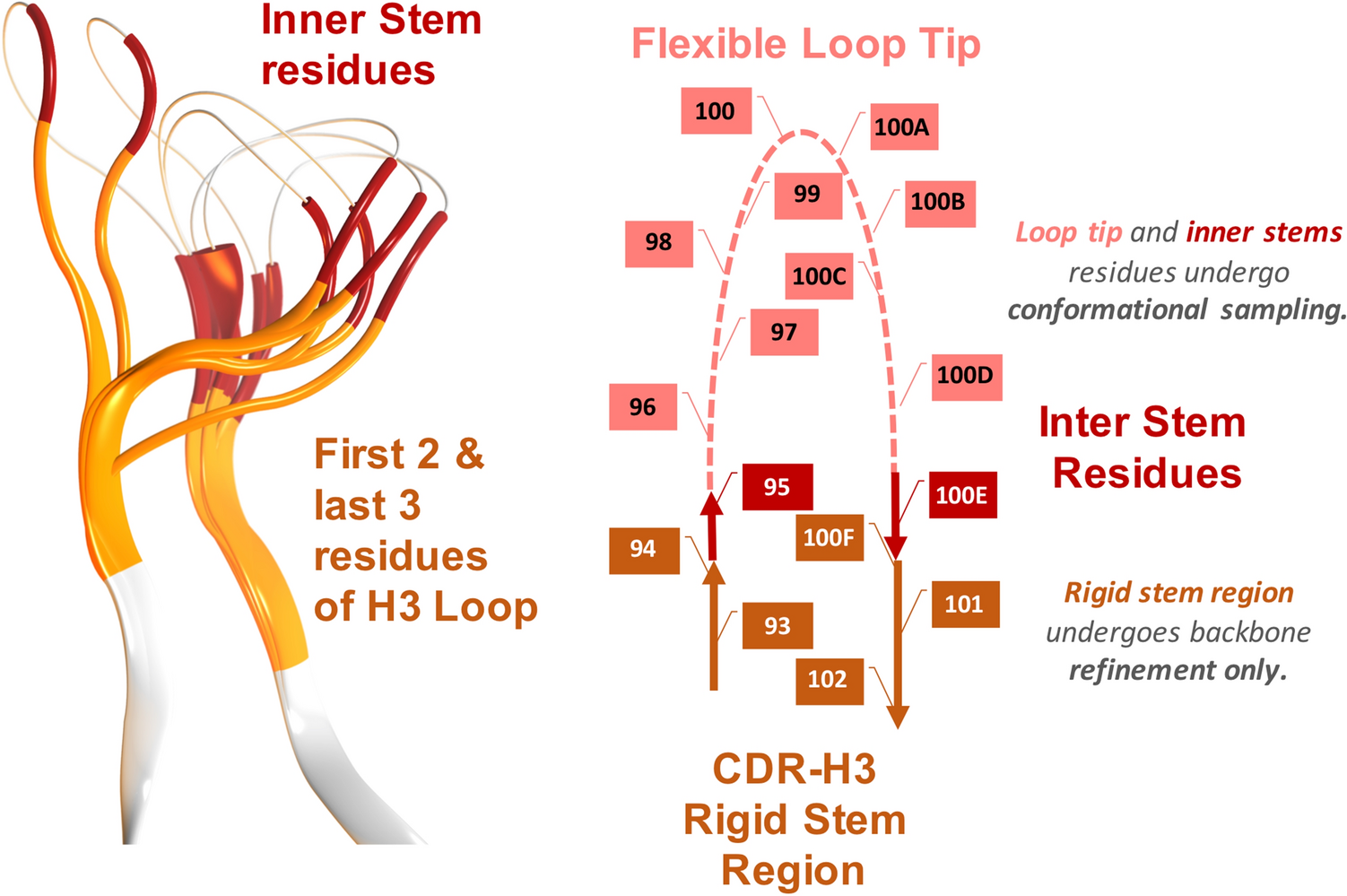

Definition of the H3 stem region for template matching. N- and C-terminal regions of the stem as defined by North et al. are rendered as cartoon, with the remaining inner H3 loop region that needs to be sampled shown as thin line. Larger structural variations for inner ends (red) of the stem led to a shortened stem (yellow) to be used in our approach.
