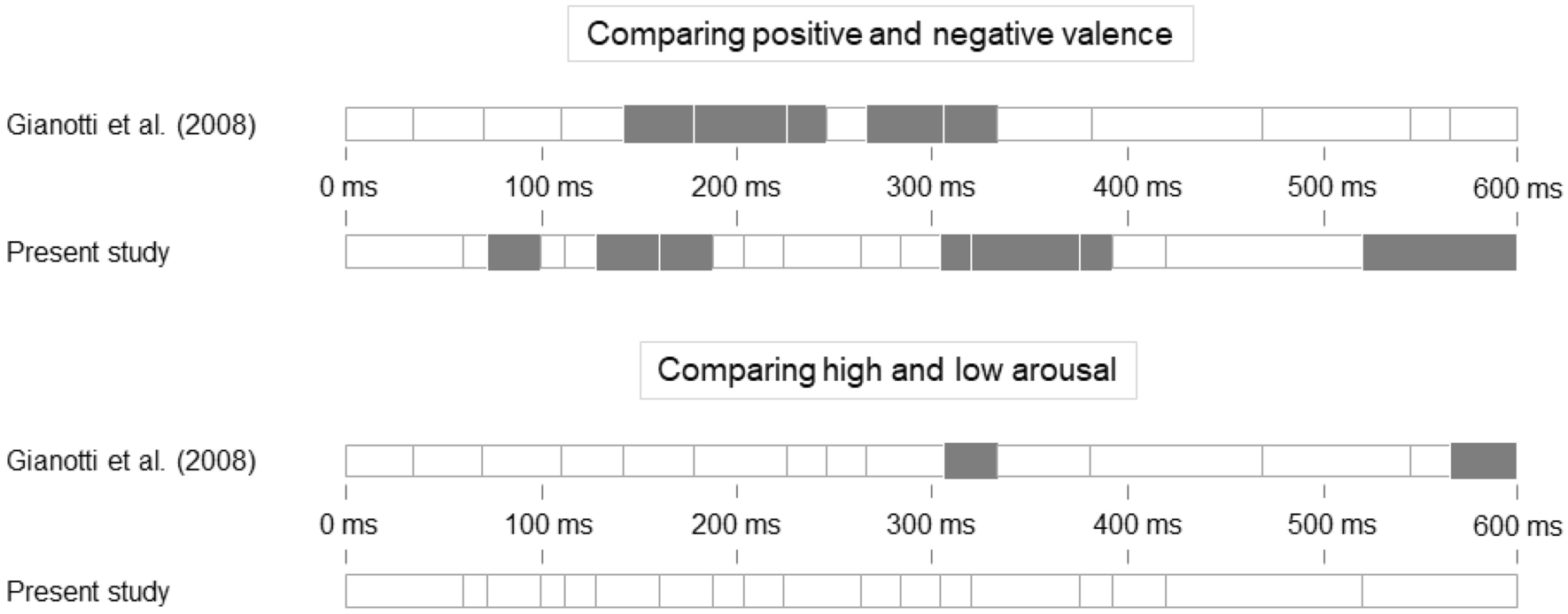

Side by side comparison of the significant microstates in the Active Viewing block of both studies. The upper panel shows the microstates with significant results in the TANOVA of negative and positive pictures in the Active Viewing block, the lower panel the ones of the TANOVA of highly and less emotionally arousing pictures in the Active Viewing block. Cell length represents the relative microstate length; colored cells are significant microstates. Stimulus onset is at 0 ms.
