Figure 3

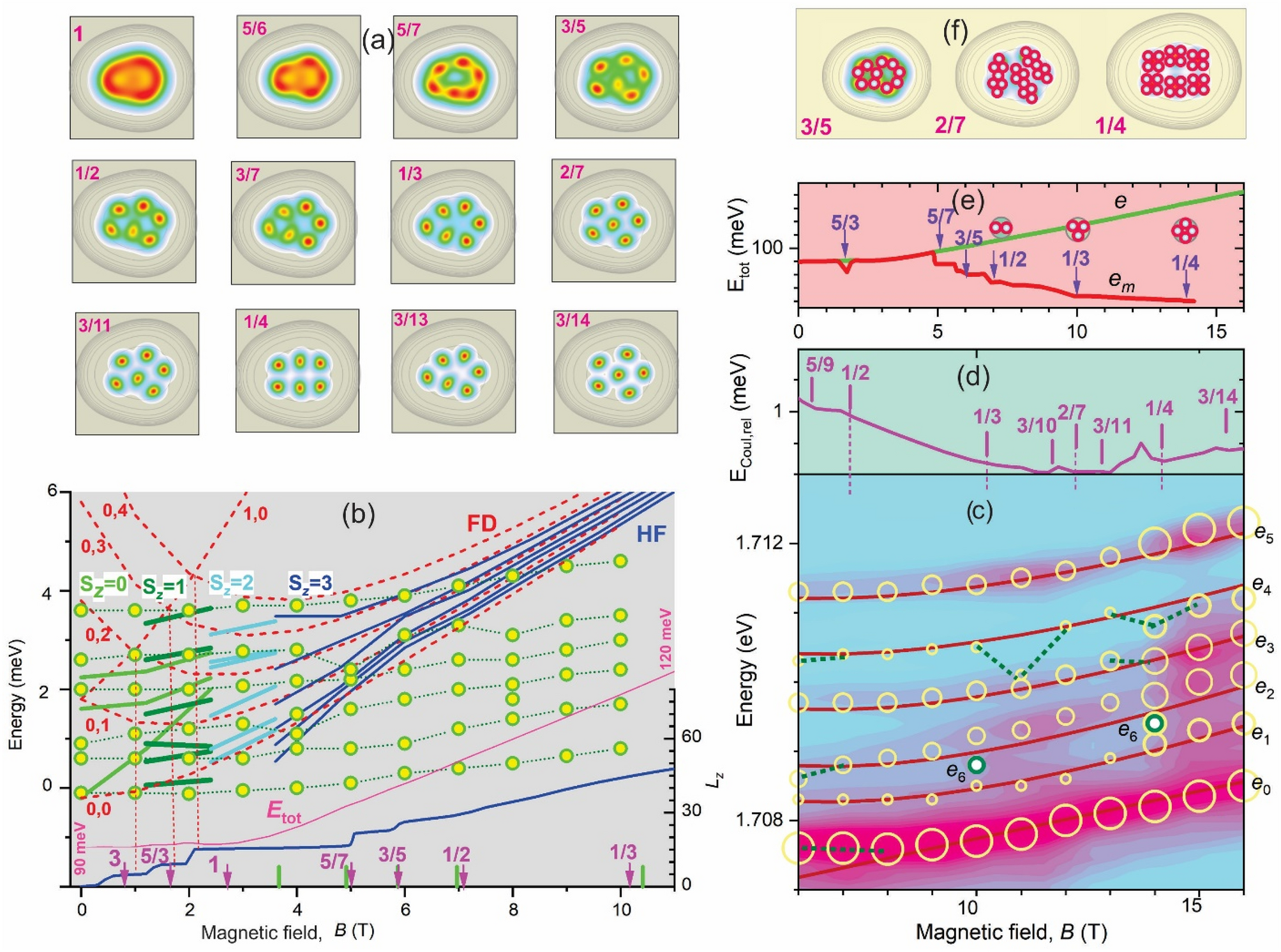

Calculated electron density distributions given by CI of the QD D1d for filling factors (numbers in the plots) ν = 1, 5/6, 5/7, 3/5, ½,3/7, 1/3, 2/7, 3/11, ¼, 3/13 and 3/14. Contours indicate the deformed confinement potential (a). Calculated total energy (thin line) ranging from 90 meV at B = 0 T to 120 meV at B = 12 T, total angular momentum L_z (thick line, axis on right side) and shifts given by FD (dashed lines) and by HF S_z = 0–3 (solid lines) versus a magnetic field range 0–10 T. Vertical dashed lines mark the crossing of the 1,0 and the 0,l FD levels. Solid circles are the experimental shifts of ASCs. The vertical arrows and bars on B-axis are B_ν “spectrum” of non-circular and circular dot (see text), respectively (b). PL spectra (contour plot) and peak shifts (open circles) versus total field B and FD fit (curves) (c). E_Coul,rel(B) (d). e versus e^ν E_tot(B) and vortexes occupying single-e area (circles) for ν = 1/2, 1/3 and ¼ (e). Schematic e^ν molecular arrangement for the QDs D4d, D1e and De4 having ν = 3/5, 2/7 and ¼, respectively (f).
