Figure 2
From: Venatorbacter cucullus gen. nov sp. nov a novel bacterial predator

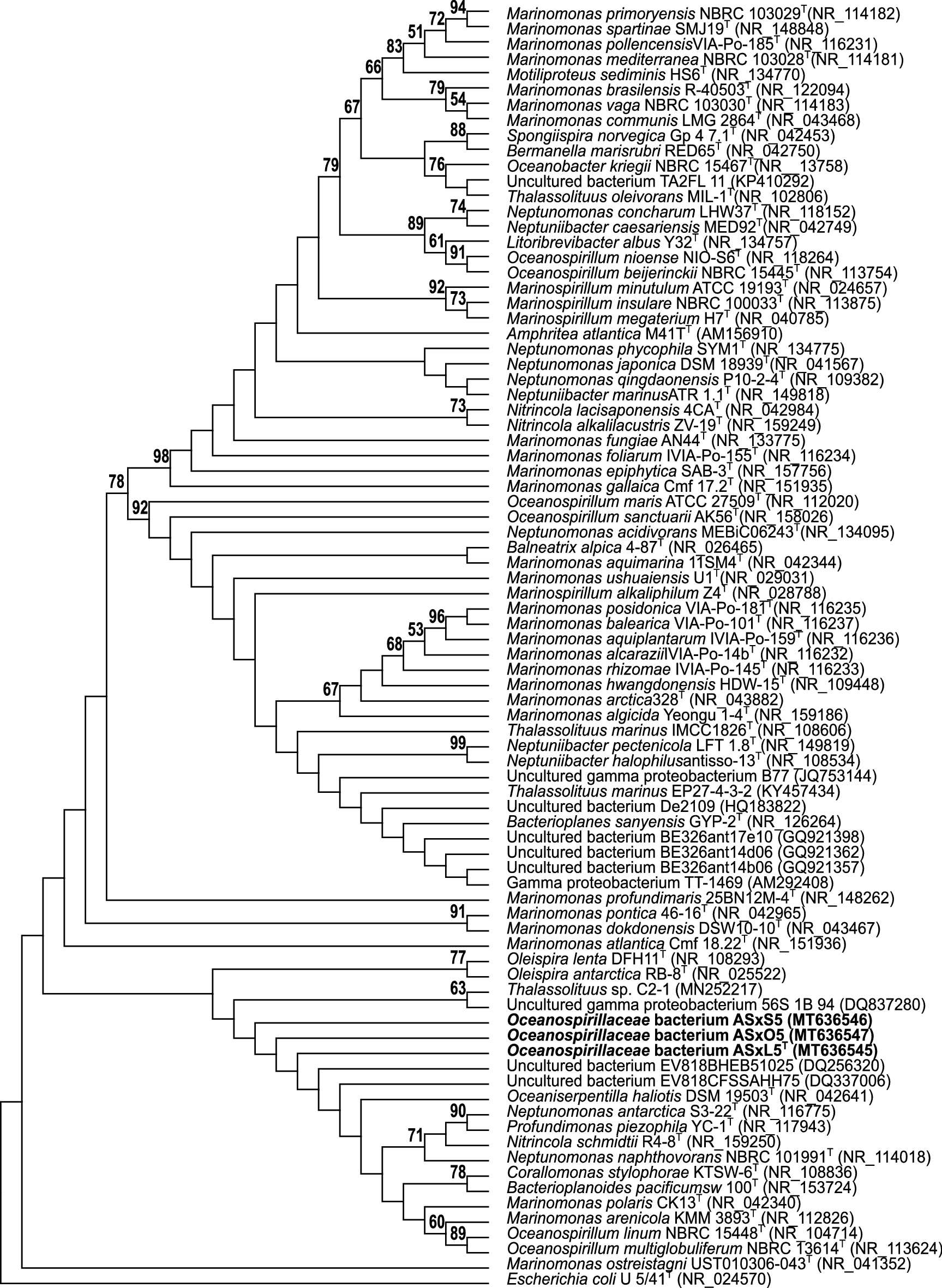

Phylogenetic tree using 16S rRNA gene sequences highlighting the position of ASxL5T, ASxO5 and ASxS5strains (emboldened) relative to uncultured and strains of marine bacteria genera within the family Oceanospirillaceae. Genbank accession numbers follow the strain name in parenthesis. Sequences were aligned using ClustalW and the phylogenic relationship inferred using the Maximum Likelihood method with the Tamura-Nei model, with 1000 bootstrap replicates, within the MEGA X program. Numbers on branches indicate bootstrap replicate values greater than 50%. Escherichia coli U/541T was used as an outgroup.
