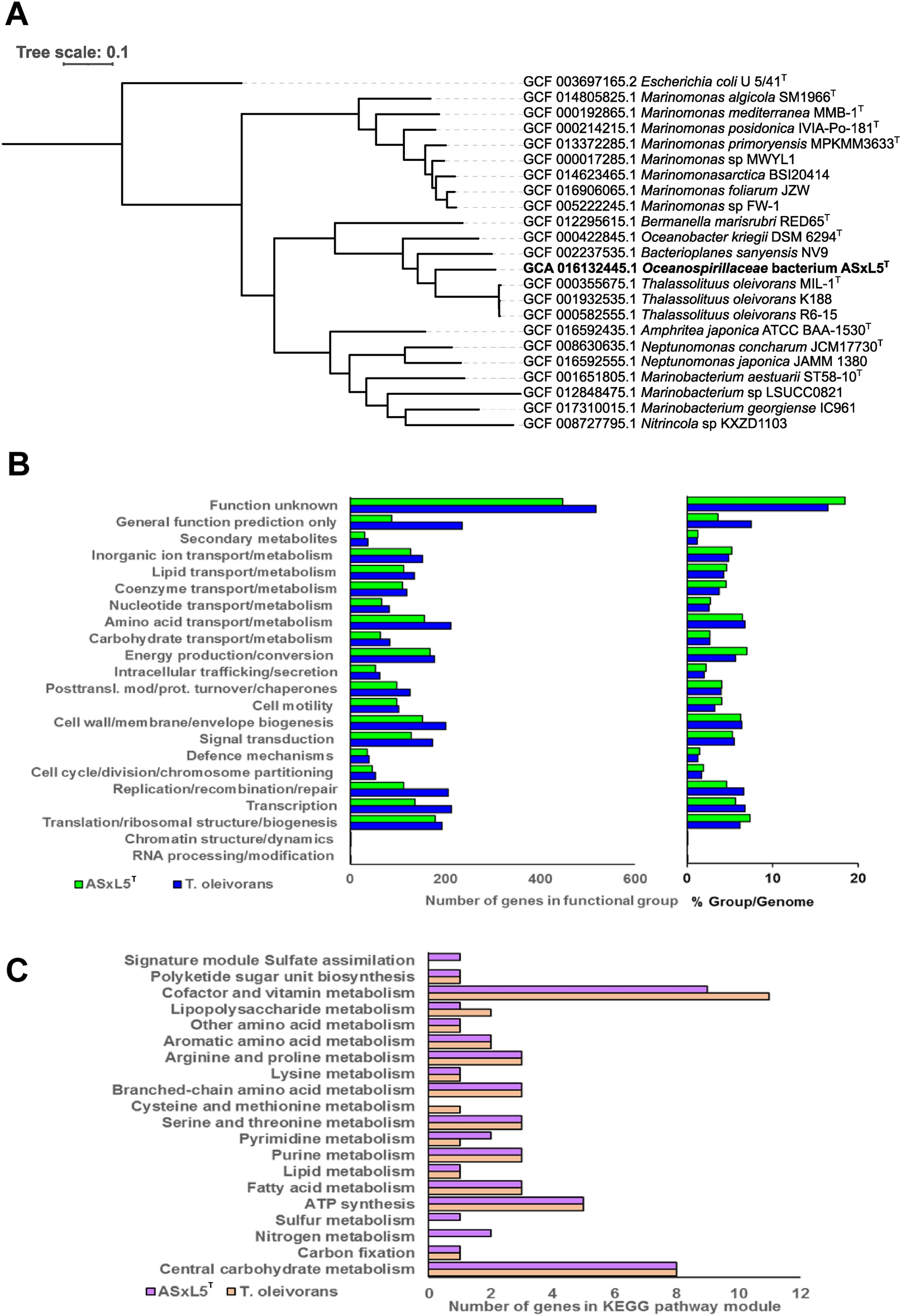

Figure 3

(A) Genome-based phylogenetic tree showing the relationship of Oceanospirillaceae bacterium ASxL5^T to closest relatives in the Oceanospirillaceae family with E. coli U 5/41^T as an outgroup. (B) Functional class distribution of predicted genes according to the clusters of orthologous groups (COG) of proteins of ASx5L^T compared to T. oleivorans MIL-1^T. Left panel shows the number of genes per functional COG category for each genome. The right panel shows the percentage of the genome that each functional COG group comprises. (C) Analysis of complete KEGG (Kyoto encyclopedia of genes and genomes) module pathways for ASxL5^T compared to T. oleiverans MIL-1^T.
