Figure 6

From: Highly efficient patterning technique for silver nanowire electrodes by electrospray deposition and its application to self-powered triboelectric tactile sensor

Figure 6

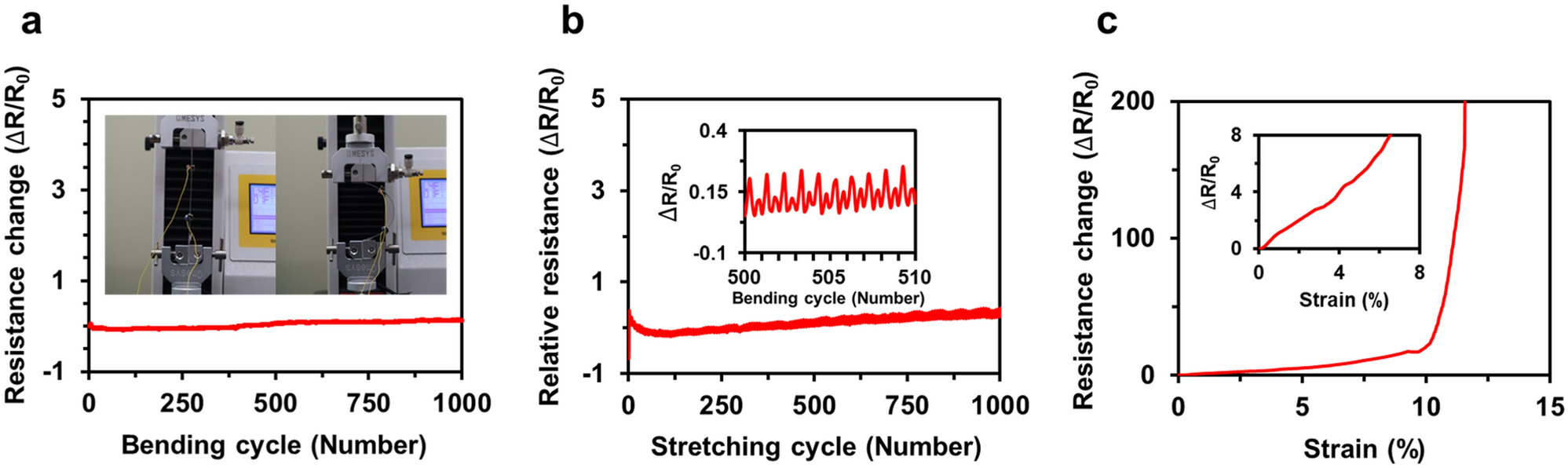

Relative resistance of AgNW electrodes fabricated through the EDGE process. (a) the cyclic bending test. Inset: a single cycle image of bending (b) the cyclic stretching test with trends of relative resistance. Inset: relative resistance with 10 cycles of stretching test, and (c) the tensile test of the AgNW electrode until the break. Inset: linear increase of relative resistance with the strain of 7%.
