Figure 7

From: Highly efficient patterning technique for silver nanowire electrodes by electrospray deposition and its application to self-powered triboelectric tactile sensor

Figure 7

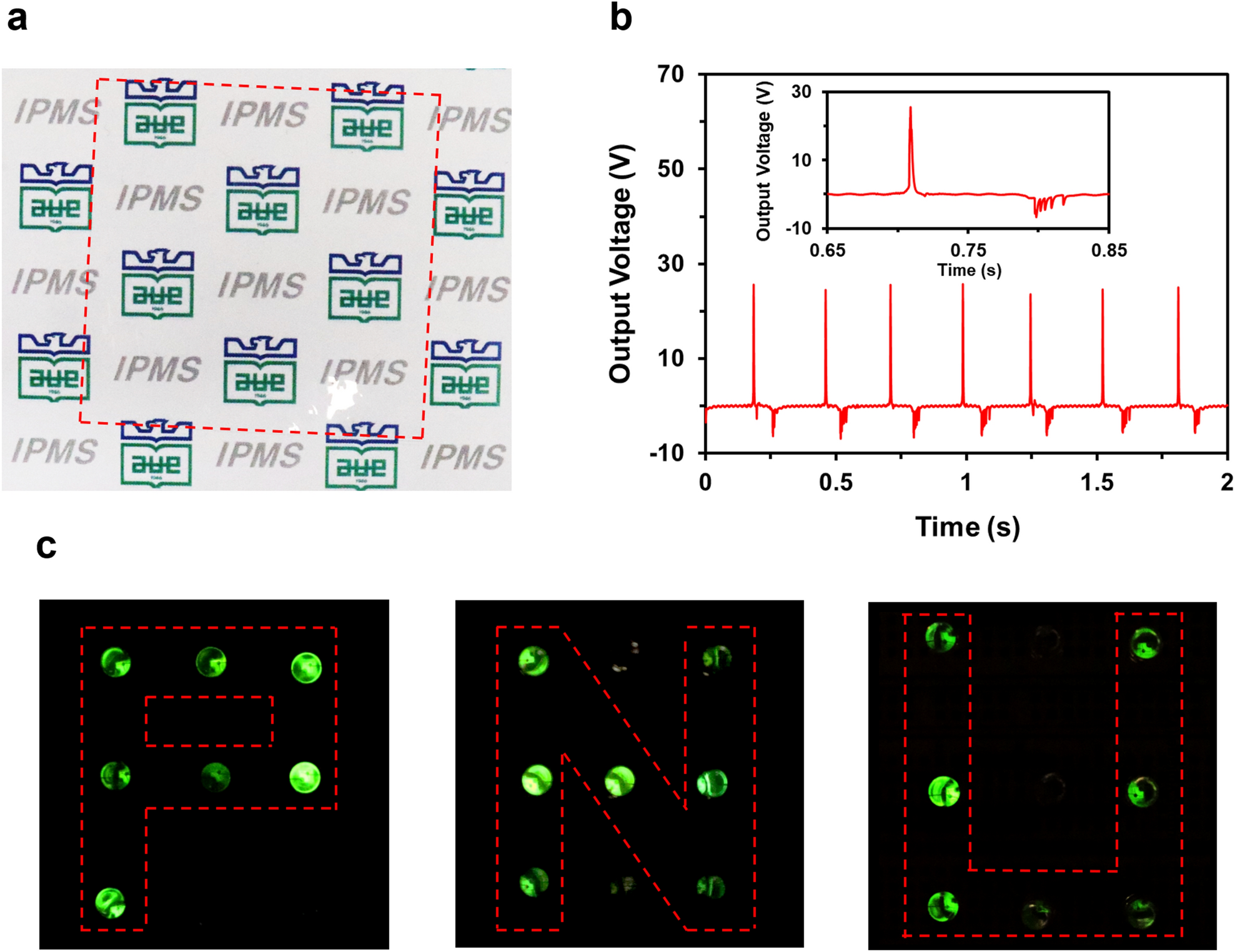

(a) A transparent self-powered tactile sensor highlighted by drawing a red-dashed box. (b) The electrical responses of the self-powered tactile sensor to touches with a finger. Inset: a single electrical response of the AgNWs electrode. (c) The self-powered tactile sensor system powered up a LED array with response to a touch of letter-shaped stamps.
