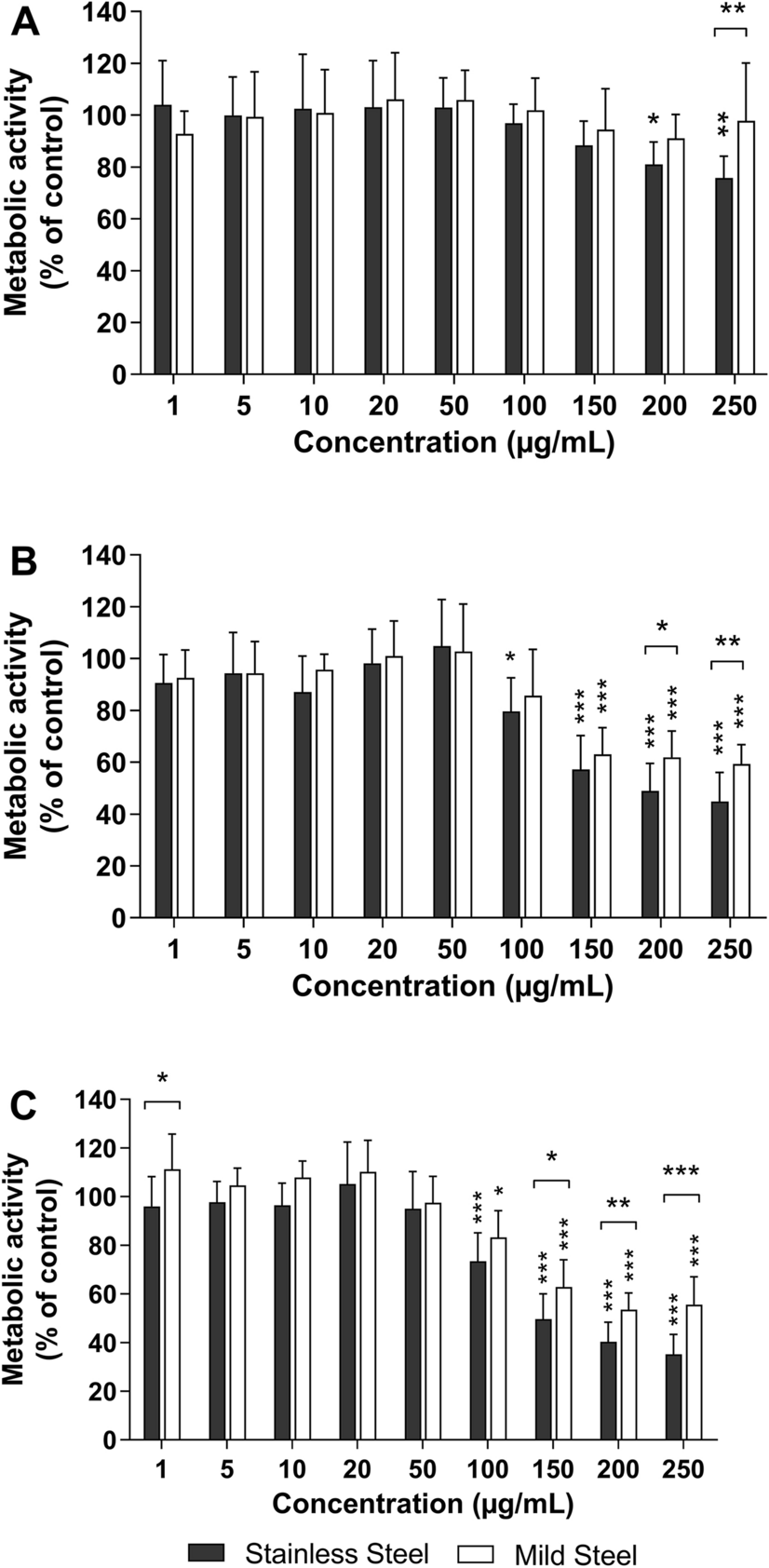

Figure 7

Cytotoxicity of welding particles in primary human small airway epithelial cells. Cells from three donors were exposed to stainless steel or mild steel welding particles (1–250 µg/mL) for 24 (A), 48 (B) and 72 (C) h. Cell viability was assessed using Alamar Blue assay and results are expressed as % metabolic activity compared to untreated cells. Results are presented as mean ± standard deviation of three independent experiments for each donor (n = 9). Statistically significant differences, as compared to the control are labelled with asterisks (* for P-value < 0.05, ** for P-value < 0.01, *** for P-value < 0.001). Figure created using GraphPad Prism version 8.3.0.
