From: An injured pachypleurosaur (Diapsida: Sauropterygia) from the Middle Triassic Luoping Biota indicating predation pressure in the Mesozoic

Figure 4

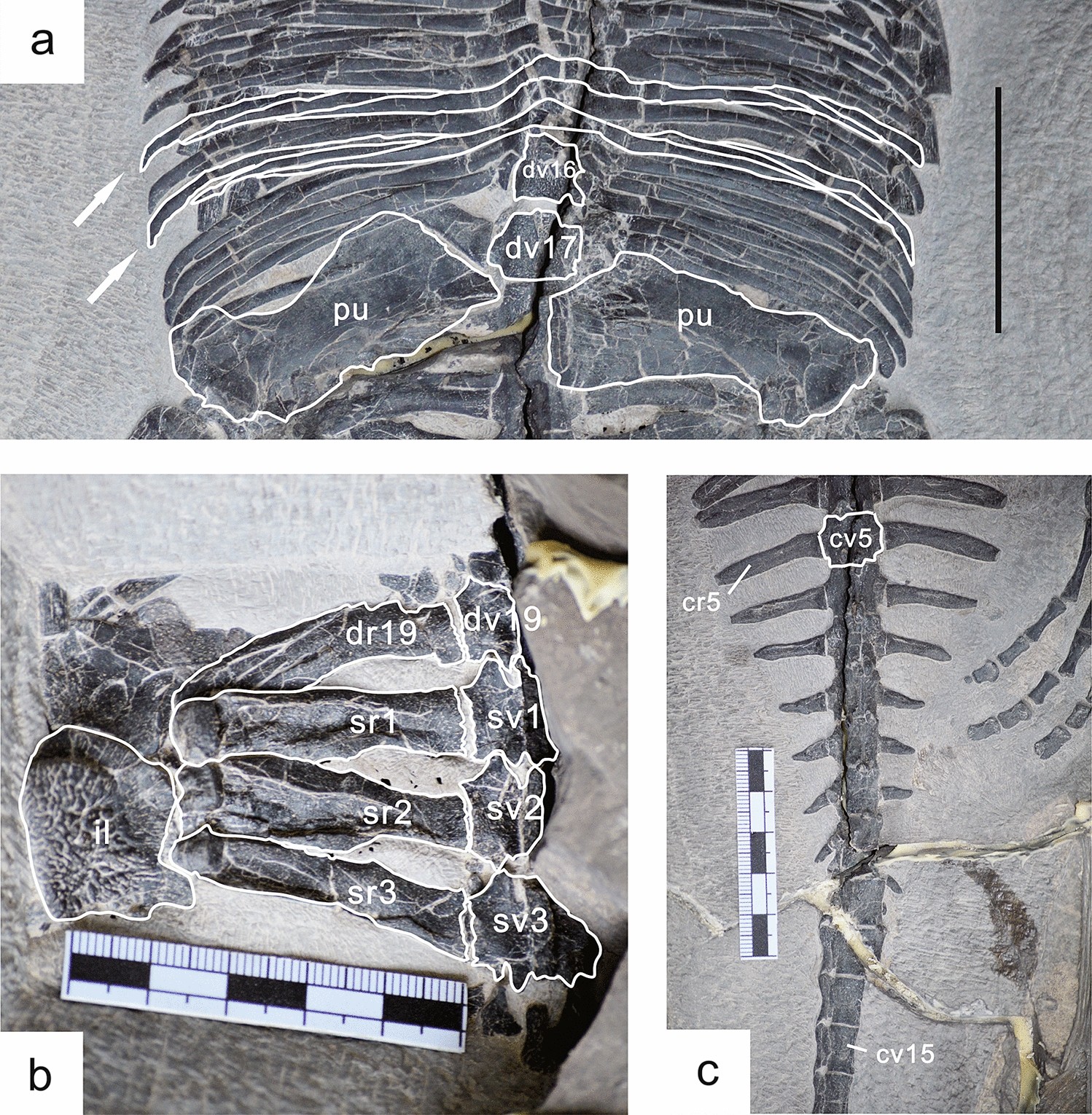

Selected postcranial parts of WIGM SPC V 1105. (a) gastralia near the sacral region in ventral view, the arrow indicating each gastralium consists of one medial element and four lateral elements; (b) sacral region in dorsal view; (c) part of the caudal region in ventral view. cr5 caudal rib 5, cv5 caudal vertebra 5, cv15 caudal vertebra 15, dr19 dorsal rib 19, dv16 dorsal vertebra 16, dv17 dorsal vertebra 17, dv19 dorsal vertebra 19, il ilium, pu pubis, sr1 sacral rib 1, sr2 sacral rib 2, sr3 sacral rib 3, sv1 sacral vertebra 1, sv2 sacral vertebra 2, sv3 sacral vertebra 3. Scale bar = 5 cm. The figure is generated using CorelDRAW X7 (https://www.coreldraw.com/en/pages/coreldraw-x7/).
