Figure 6
From: Validation and application of a novel in vivo cervical spine kinematics analysis technique

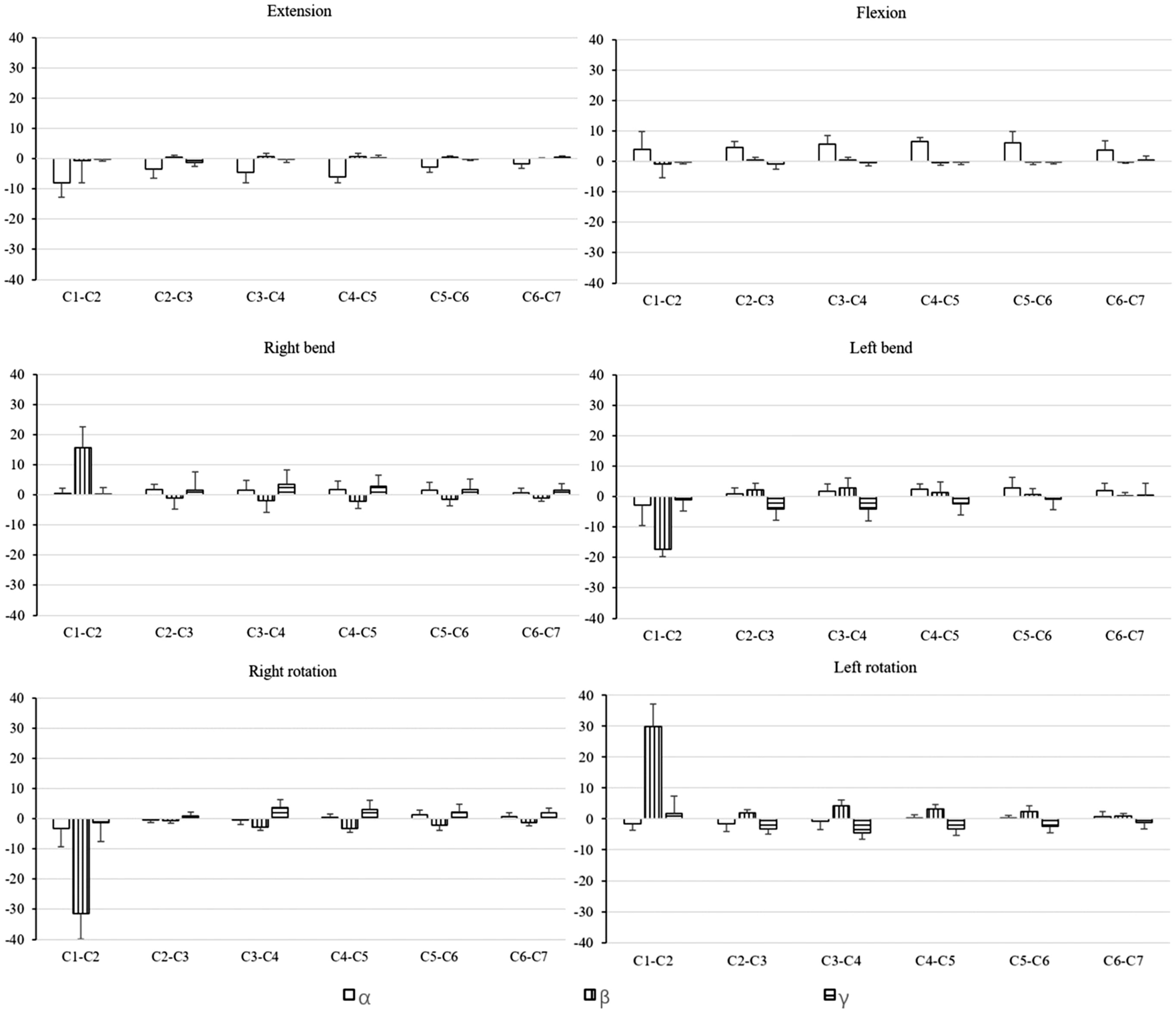

Rotation (°) changes of the cervical spine at six analyzed positions. Rotation (°): α, F (−)-E ( +); γ, LB left (−)-right ( +); β, AR right (−)-left ( +). A graphic legend indicating the meaning of the bar colors is shown in the bottom right of the figure.
