From: The computational analyses, molecular dynamics of fatty-acid transport mechanism to the CD36 receptor

Figure 2

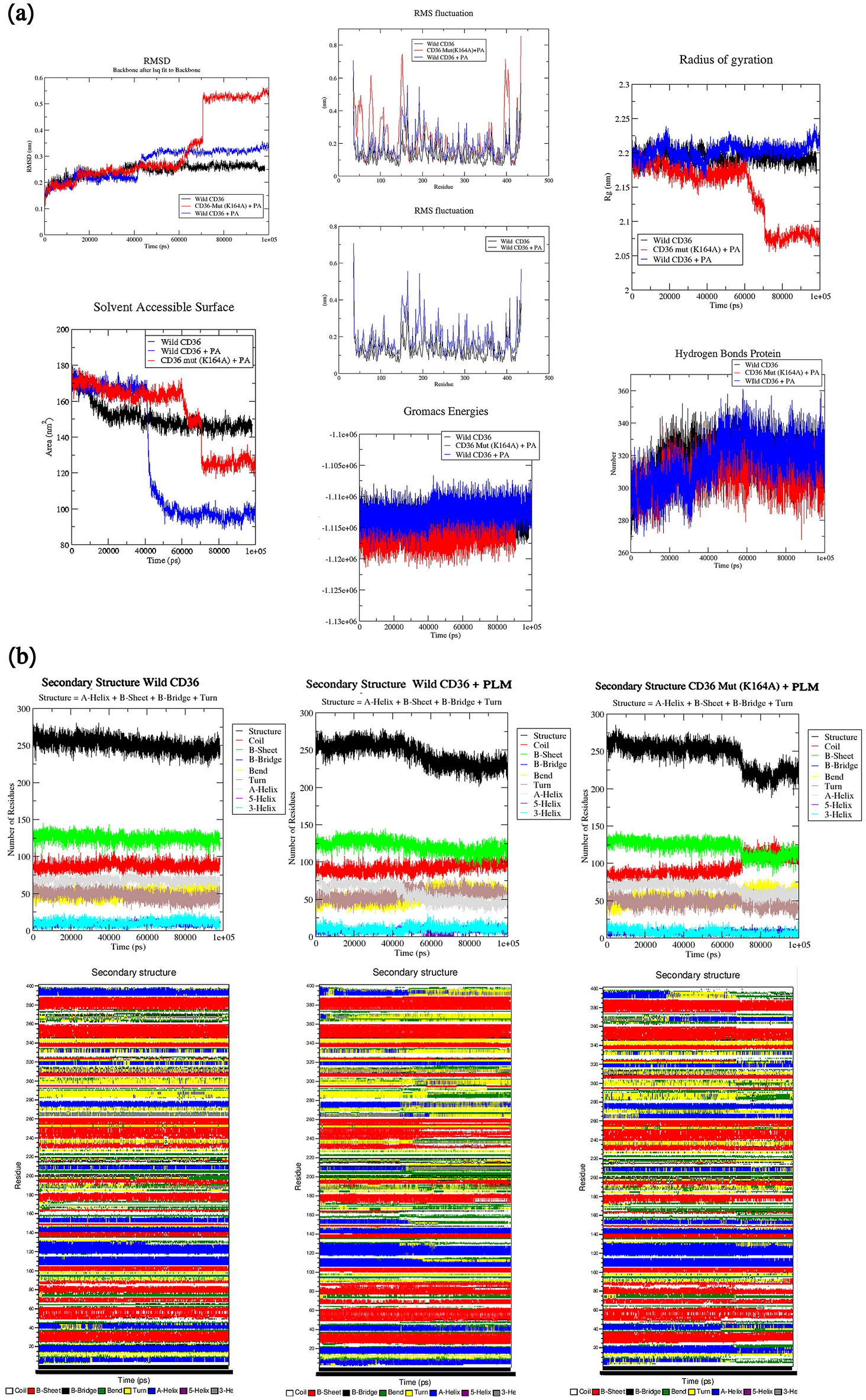

(a) Dynamics analyses of plamitic acid (PLM) uptake across the wild and mutant type CD36 receptor. RMSD plot, Backbone residual fluctuations (RMSF) plot, time evolution of Radius of Gyration (Rg), Solvent Accessible Surface (SASA), Gromacs Energies and Hydrogen Bonds for wild and mutant type of CD36 in presence and absence of PLM a function of time during 100,000 ps (100 ns). Black, blue, and red, represent values obtained for Wild type CD36 in absence of PLM, wild type CD36 in presence of a single PLM, mutant K164A type CD36 in e of in presence of a single PLM respectively. (b) DSSP analysis for the secondary structure fluctuations as a function of time from 0 to 100 ns of plamitic acid (PLM) uptake across the wild and mutant type CD36 receptor.
