Figure 6 | Scientific Reports

Figure 6

From: The computational analyses, molecular dynamics of fatty-acid transport mechanism to the CD36 receptor

Figure 6

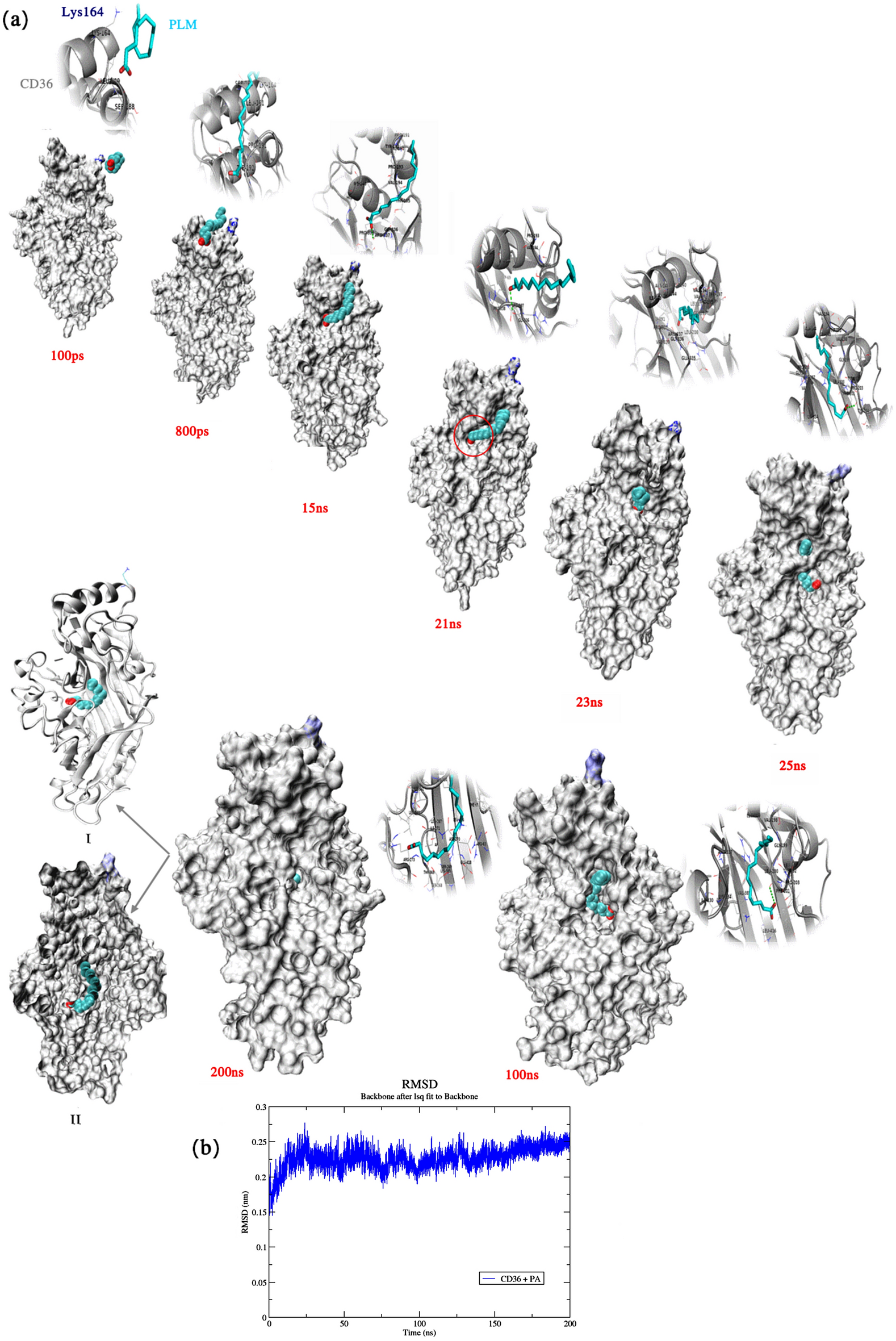

A snapshots representing the pathway of palmitic acid al transport at the portal of the CD36. (a) The snapshots correspond with 100 ps, 800 ps, 15 ns, 21 ns, 23 ns, 25 ns, 100 ns, 200 ns with one FA adsorbed to the protein. (b) The RMSD of the system, as they evolve with time. A is representation of Fatty acids at the starting point of the simulation 200 ns.
