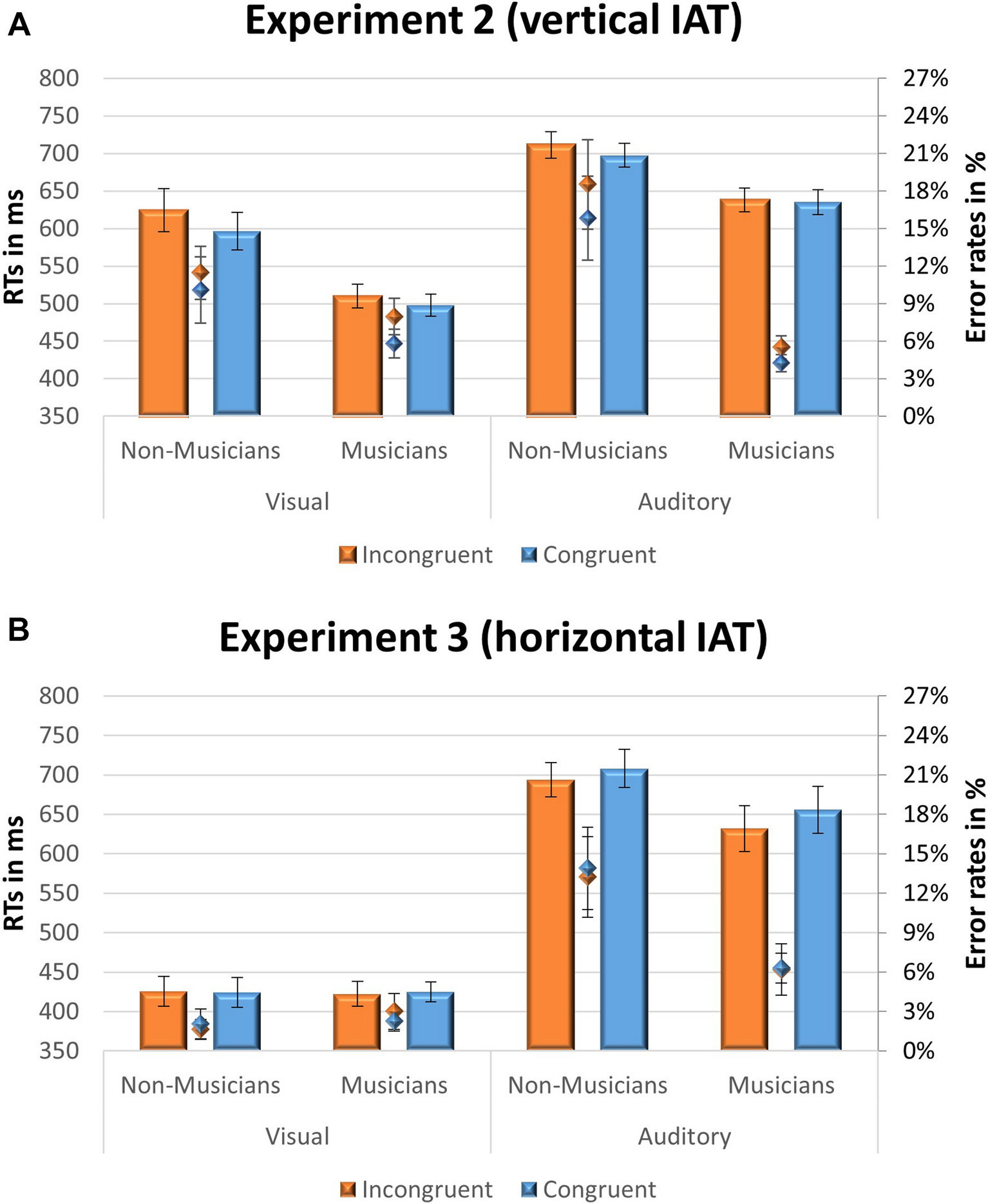

Figure 5
From: Space oddity: musical syntax is mapped onto visual space
(A) Mean reaction times (bars) and error rates (diamonds) in Experiment 2 (IAT probing the vertical axis). (B) Mean reaction times (bars) and error rates (diamonds) in Experiment 3 (IAT probing the horizontal axis), for congruent (blue) and incongruent (red) blocks of trials, as a function of modality (visual, auditory), and musical experience (musicians, non-musicians). Congruency was determined according to Experiment 1 results (e.g., tonally stable degrees were paired with upper and left-hand positions and tonally unstable degrees were paired with lower and right-hand positions). Line bars represent the standard errors.
