Figure 3

From: A spatial analysis of seagrass habitat and community diversity in the Great Barrier Reef World Heritage Area

Figure 3

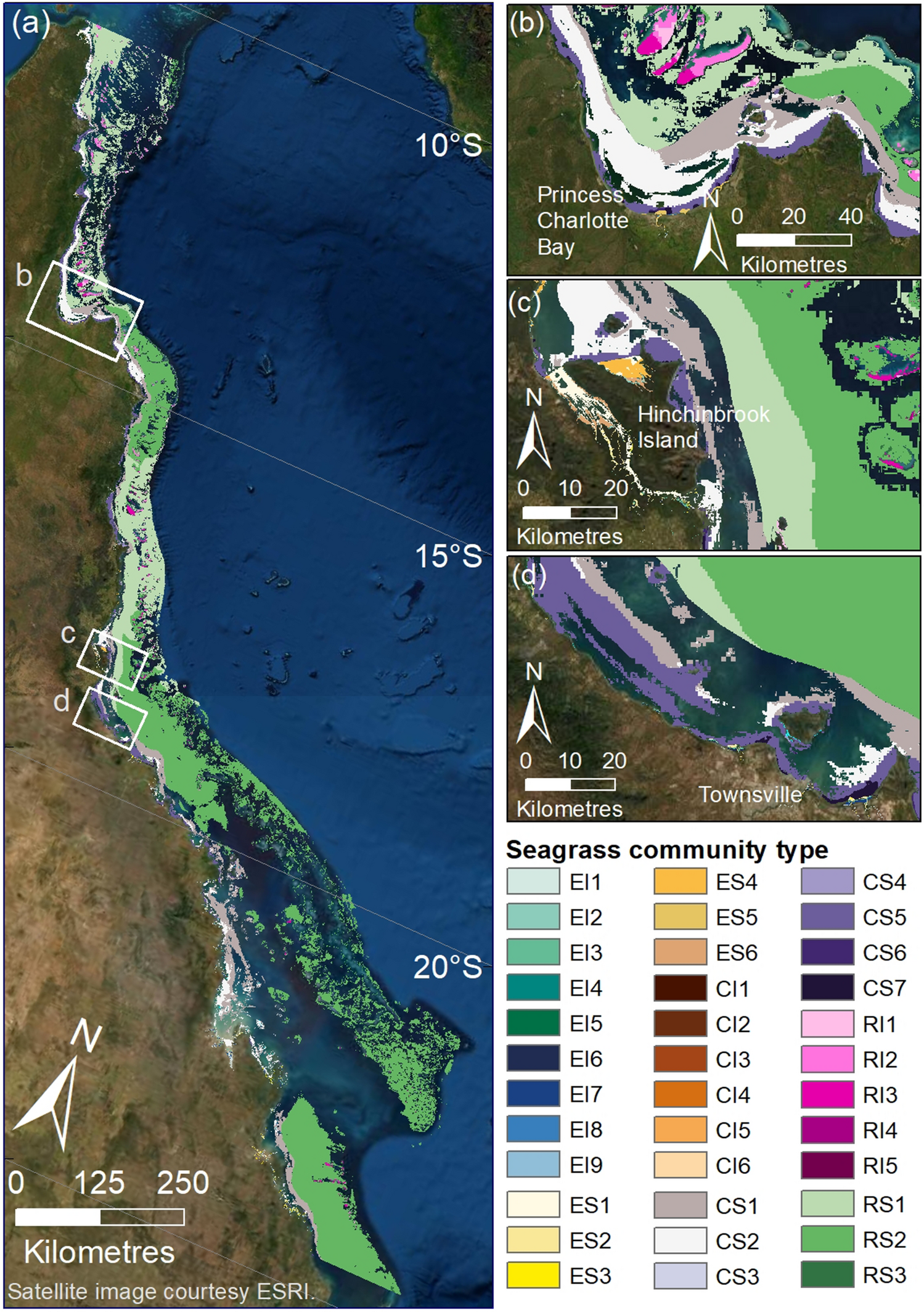

(a) Thirty-six seagrass communities predicted for the Great Barrier Reef World Heritage Area and adjacent estuaries: estuary intertidal (EI1–EI9), estuary subtidal (ES1–ES6), coastal intertidal (CI1–CI6), coastal subtidal (CS1–CS7), reef intertidal (RI1–RI5), and reef subtidal (RS1–RS3) communities. (b–d) Finer-scale maps demonstrating predicted boundaries between communities at select locations. Map created using ArcGIS software version 10.8 by Esri (www.esri.com). Satellite image copyright Esri.
