Figure 1

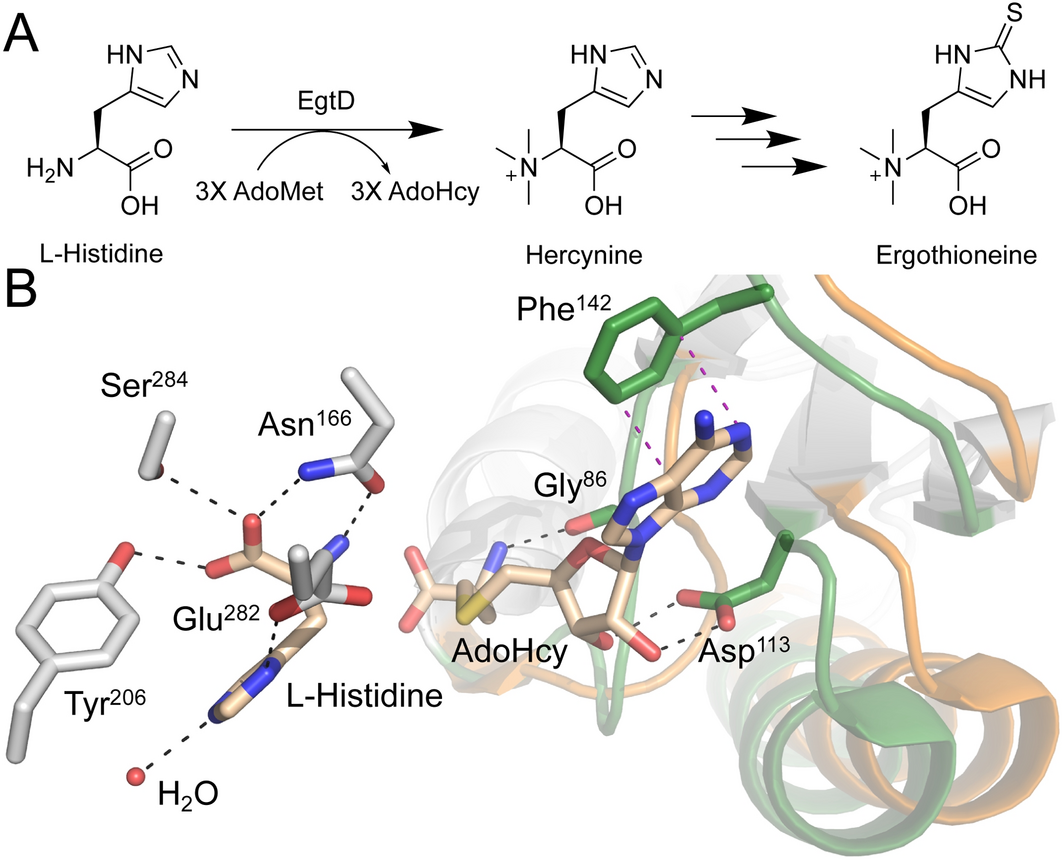

Synthesis of EGT and EgtD structure in actinobacteria. (A) Multi-step pathway in which L-Histidine is converted into EGT in M. tb. (B) Superposition of M. smegmatis EgtD in a complex with L-Histidine only (orange) and with both L-Histidine and AdoHcy (green) (PDB: 4uy6 and 4uy7). Residues interacting with L-Histidine are shown with gray carbons and those interacting with AdoMet are in green.
