Figure 1

From: Evaluation of airborne total suspended particulates and heavy metals in anodizing and electroplating surface treatment process

Figure 1

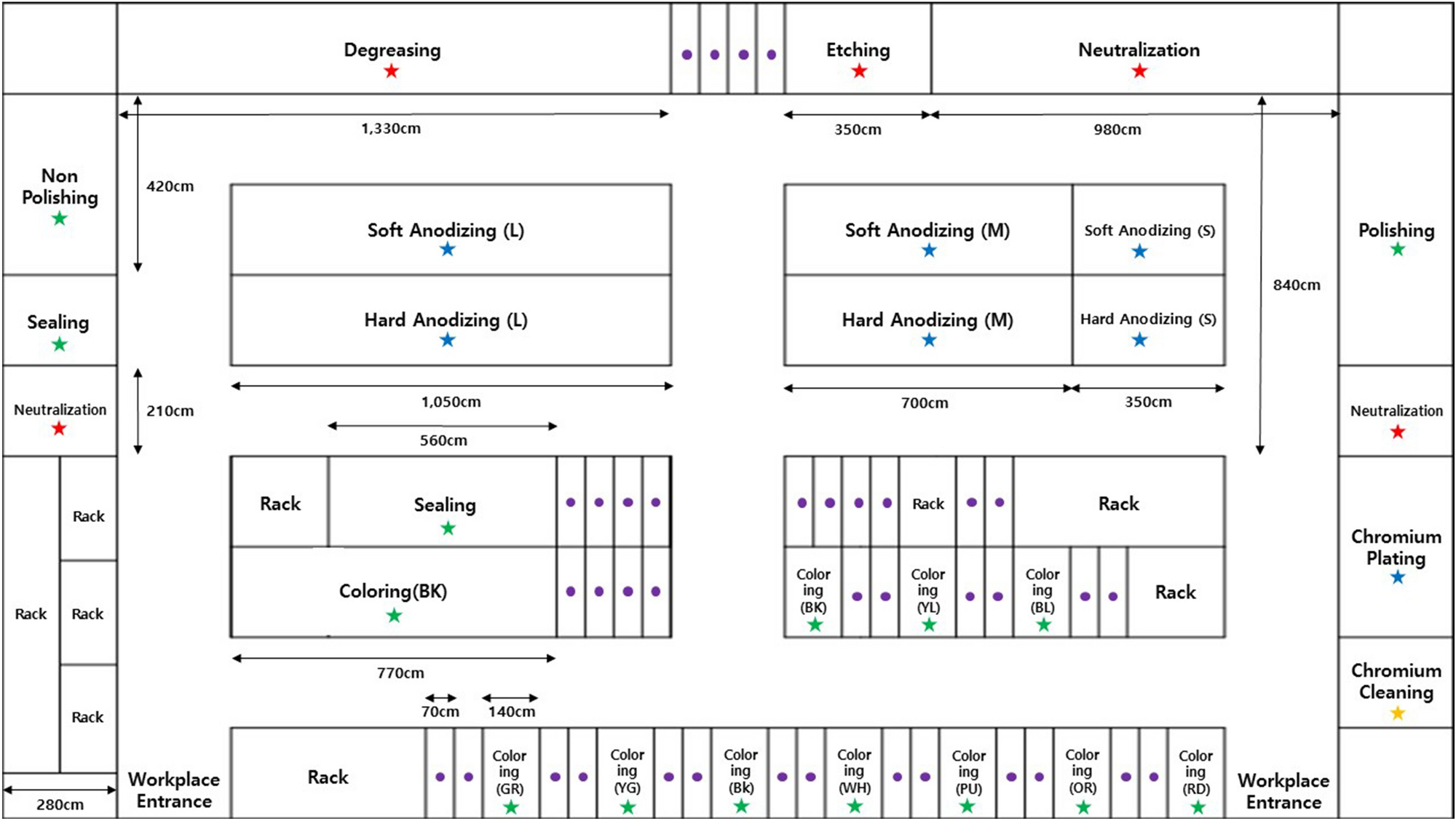

Anodizing and Electroplating schematic and sample location 1: the icons are the sampling locations (red star: pre-treatment process, blue star: anodizing and electroplating process, green star: post-treatment process, orange star: other processes, purple circle: cleaning process). RD Red, OR Orange, YL Yellow, GR Green, BL Blue, PU Purple, YG Yellow Green, WH White. Workplace (35 m × 17.85 m).
