Figure 8
From: Effects of interactions in natural gas/water/rock system on hydrocarbon migration and accumulation

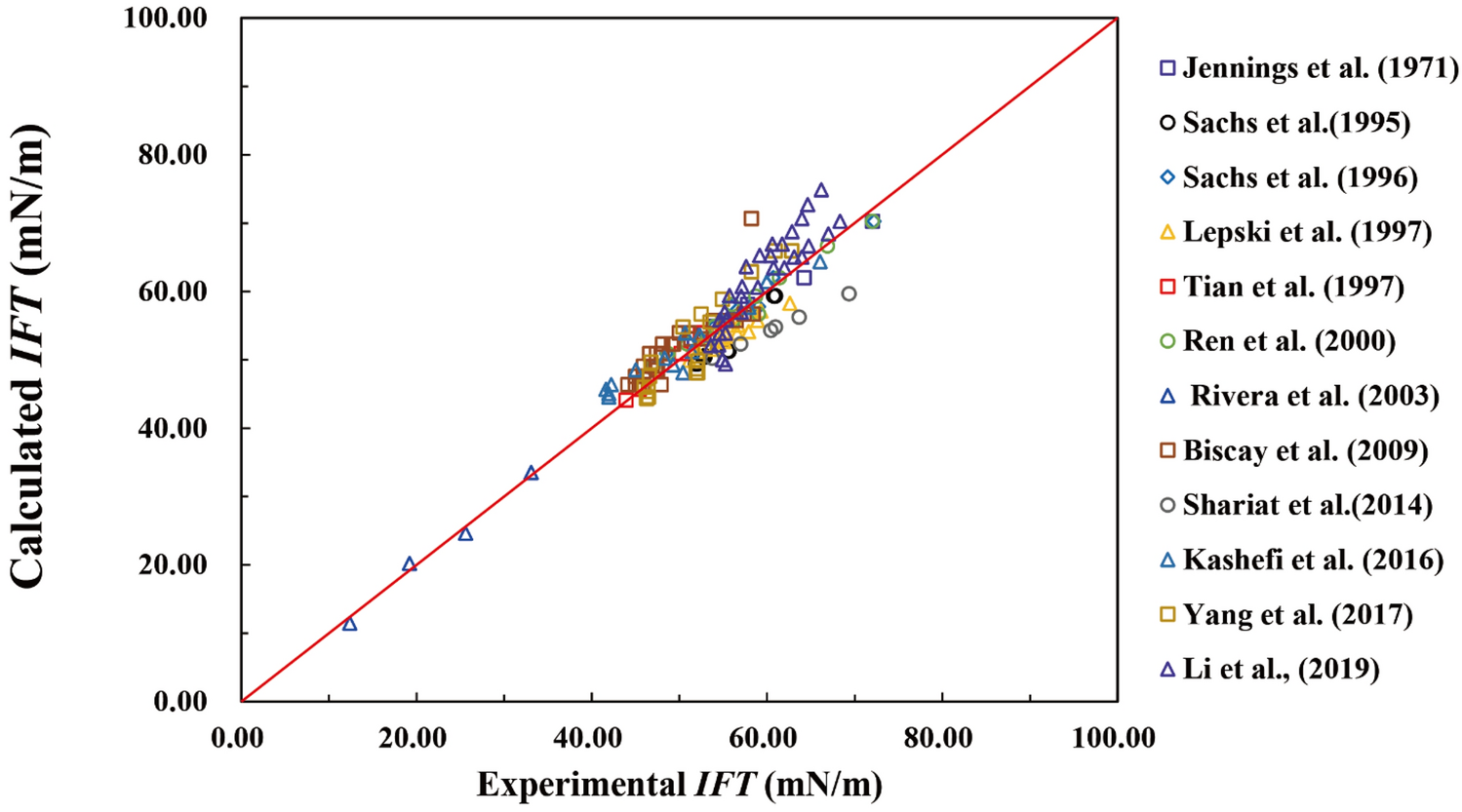

Comparison of the IFT from published experiments and simulations with the calculated results by the proposed model. The diagonal line is the guided line for convenient comparison of our semi-empirical model and 167 published cases.
