Figure 9
From: Effects of interactions in natural gas/water/rock system on hydrocarbon migration and accumulation

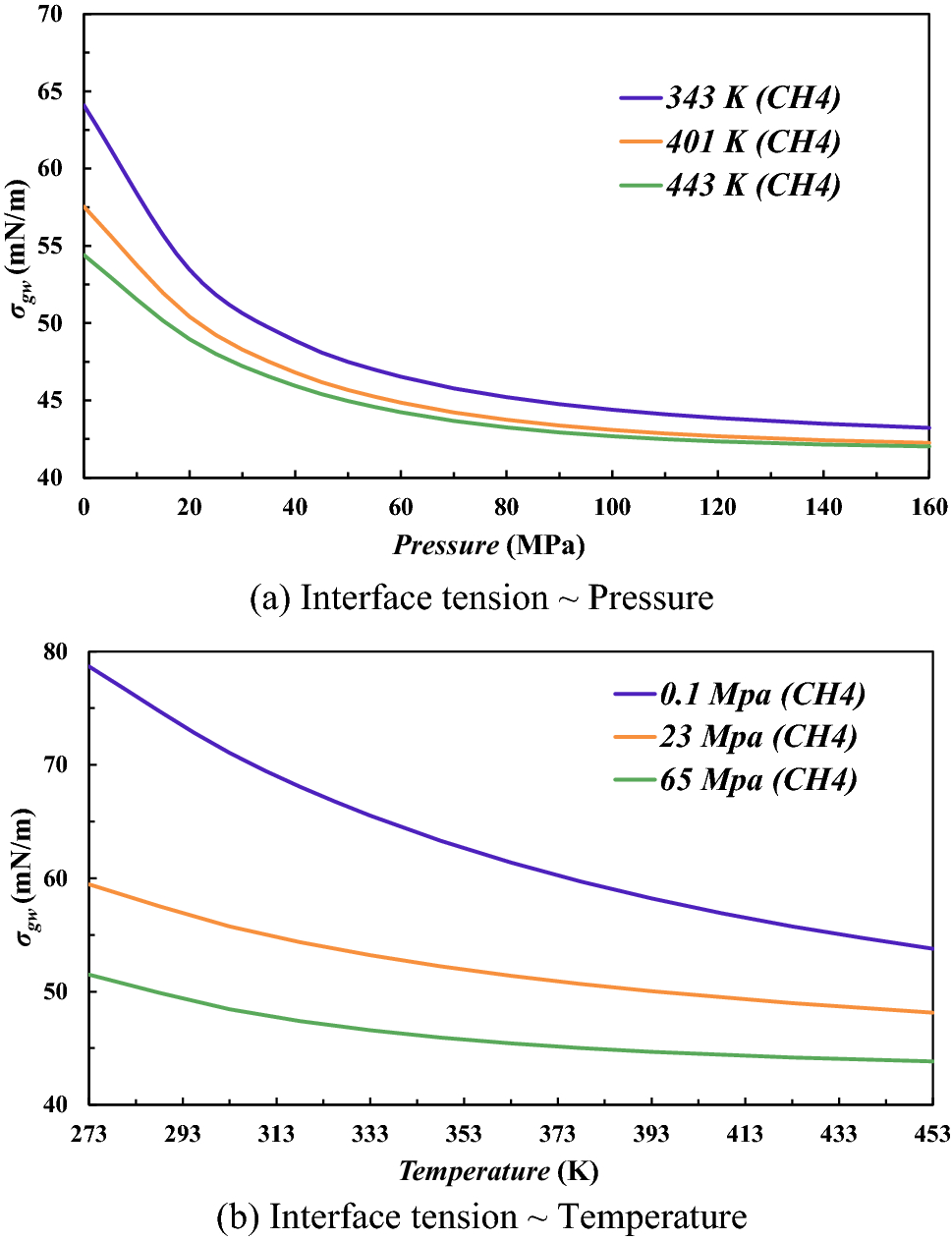

IFT of the CH4 and water system under different pressure and temperature. Different color indicates the variation of interface tension under different temperature or pressure.
