Figure 6
From: Beyond livestock carrying capacity in the Sahelian and Sudanian zones of West Africa

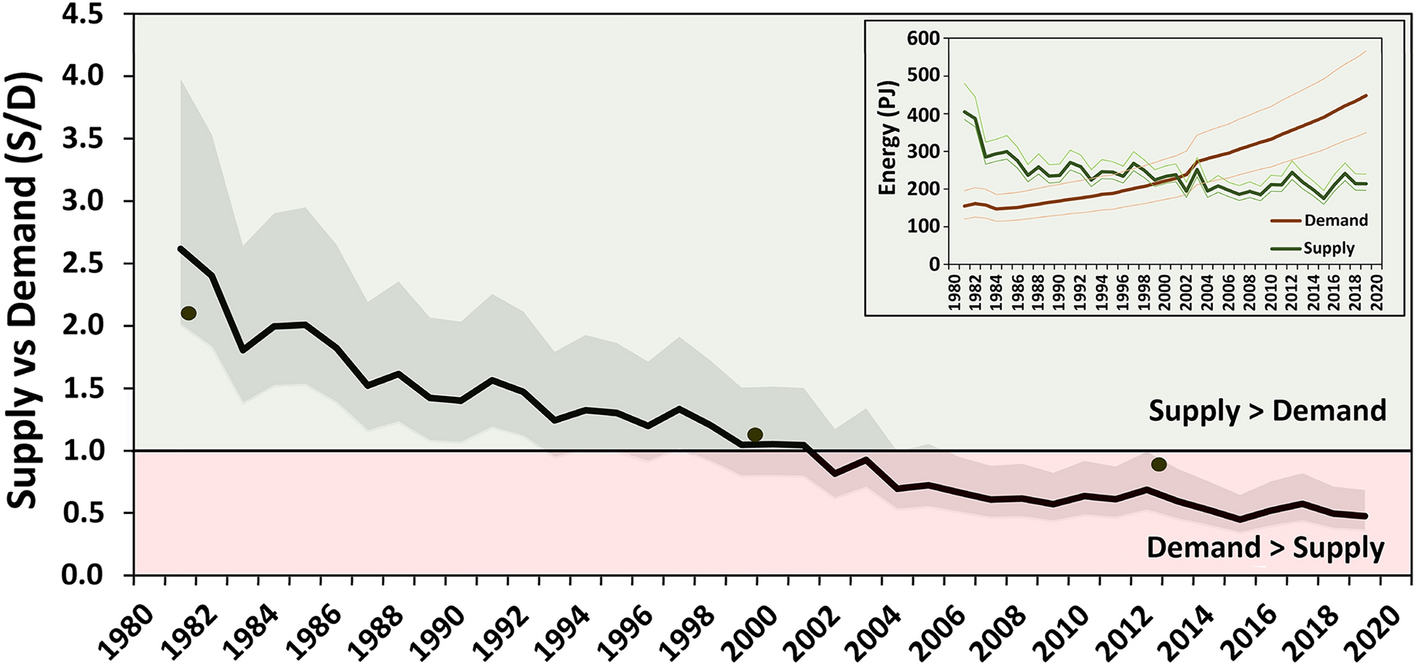

Time series and the derivation of energy supplied from the main feed resources (grass, crop residue, and brows)/energy demand of the livestock population (S/D) in the study area for the historical period of 1981 to 2020. The inset graph shows the average demand and supplied ME in Petajoule (PJ) per year. The black dots represent result if year-specific land-use maps for the years 1981, 2000, and 2013 are used. The shaded area enclosing the S/D line represents the uncertainty of simulations as originating from parametric uncertainties (Table S.1). The figure was generated using Microsoft Excel 2016 (https://www.microsoft.com/de-de/microsoft-365/excel).
