Figure 2

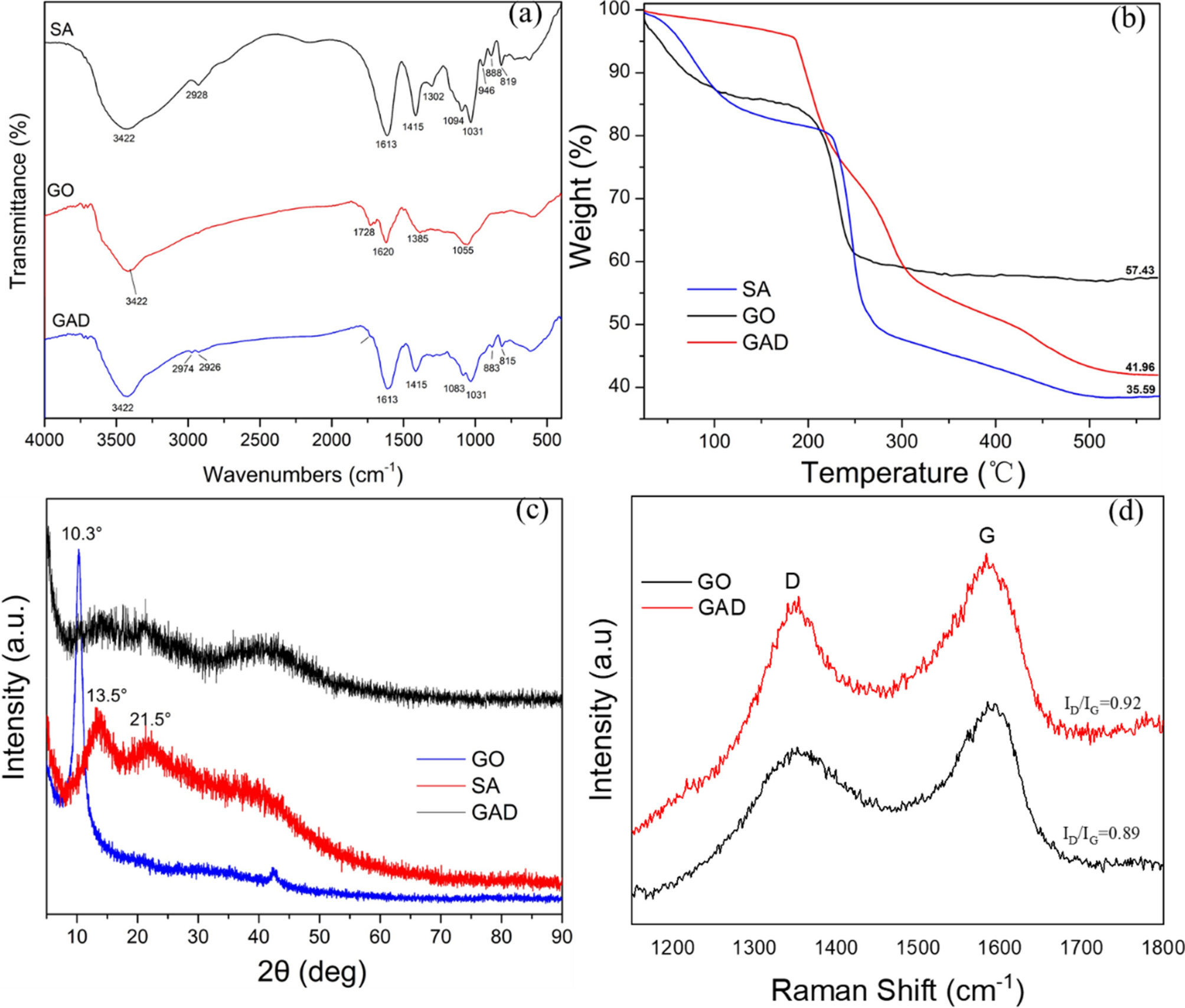

(a) FTIR spectra of SA, GO and GAD, (b) TGA of SA, GO, and GAD, (c) XRD of SA, GO, and GAD, (d) Raman spectra of GAD and GO.
Figure 2 | Scientific Reports
(a) FTIR spectra of SA, GO and GAD, (b) TGA of SA, GO, and GAD, (c) XRD of SA, GO, and GAD, (d) Raman spectra of GAD and GO.
