Figure 6 | Scientific Reports

Figure 6

From: Removal of Sb(III) by 3D-reduced graphene oxide/sodium alginate double-network composites from an aqueous batch and fixed-bed system

Figure 6

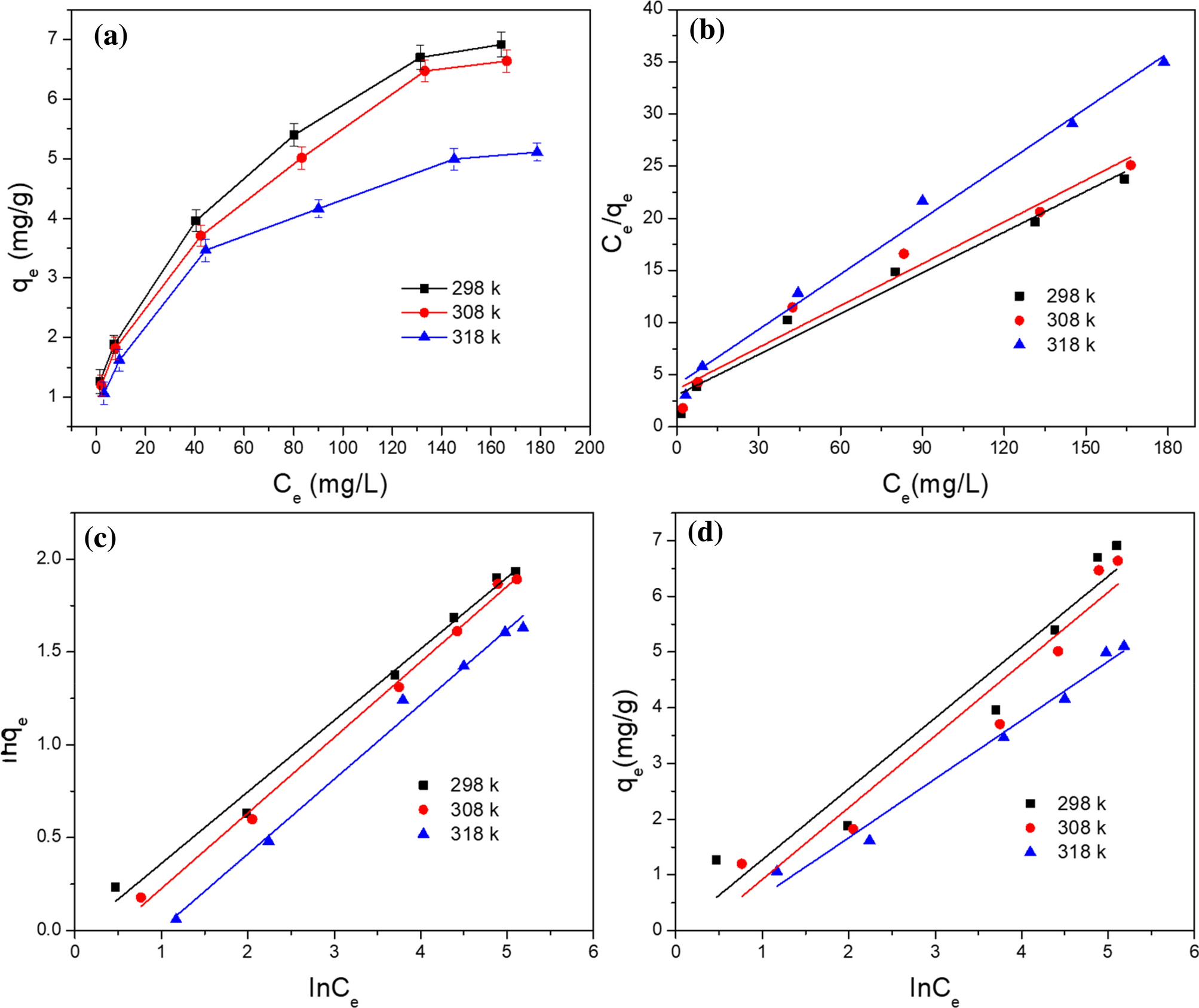

(a) Effect of temperature on the removal of Sb(III) by GAD. (b) Langmuir isotherm fitting. (c) Freundlich isotherm fitting. (d) Temkin isotherm fitting (pH = 6; dosage = 400 mg/50 mL dry weight; Sb(III) concentration = 10–220 mg/L; temperature = 298, 308, 318 k; rotation speed = 150 rad/min; contact time = 240 min).
