Figure 4
From: X-ray computed tomography (CT) and ESEM-EDS investigations of unusual subfossilized juniper cones

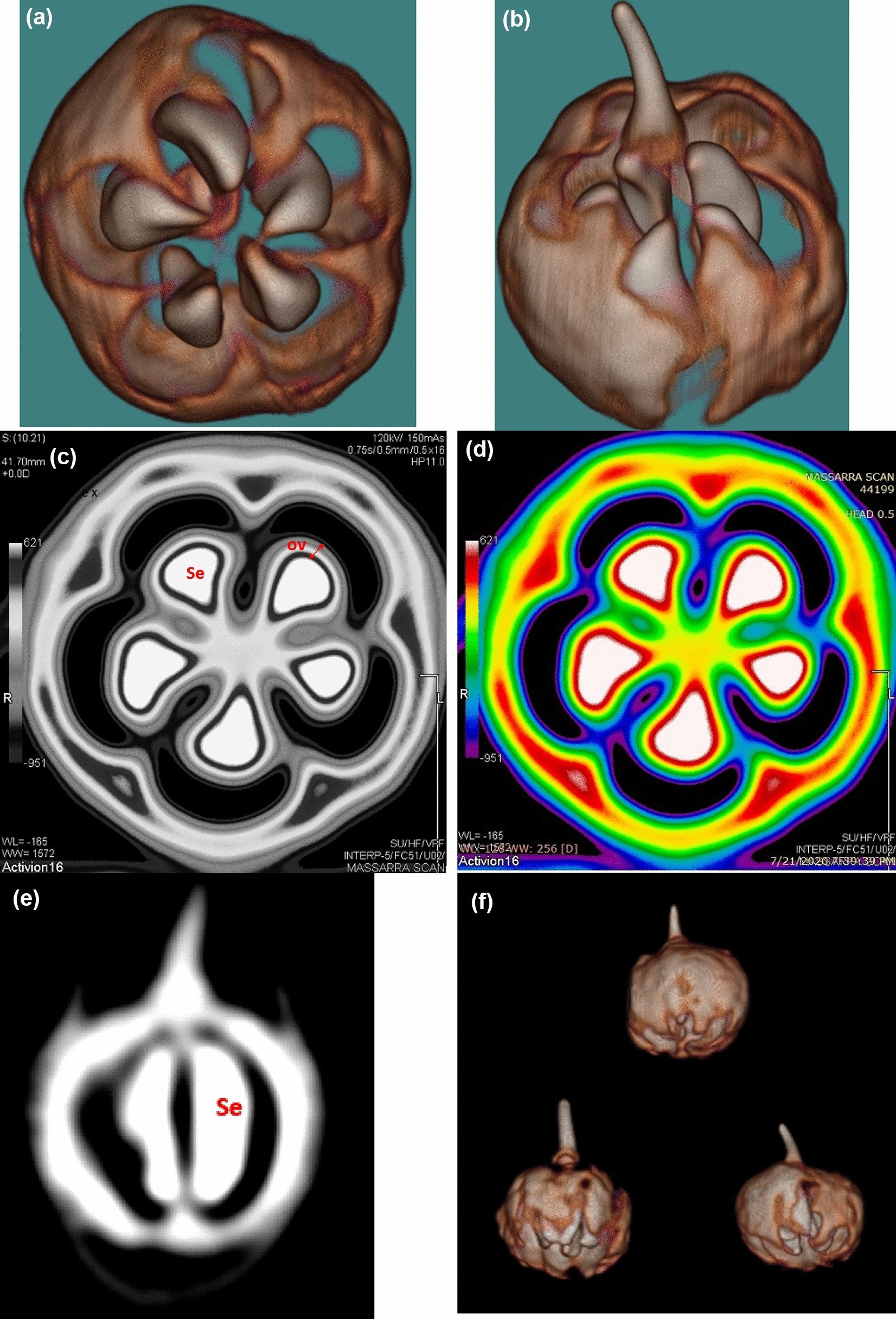

CT scanning of the modern fruit specimen; top view (a) and side view (b), transverse sections in the endocarp (c,d) Ov ovules; longitudinal section (Se seed) (e), and the shape and form of the whole cone (f).
