Figure 5

From: Enhancing osteoblast survival through pulsed electrical stimulation and implications for osseointegration

Figure 5

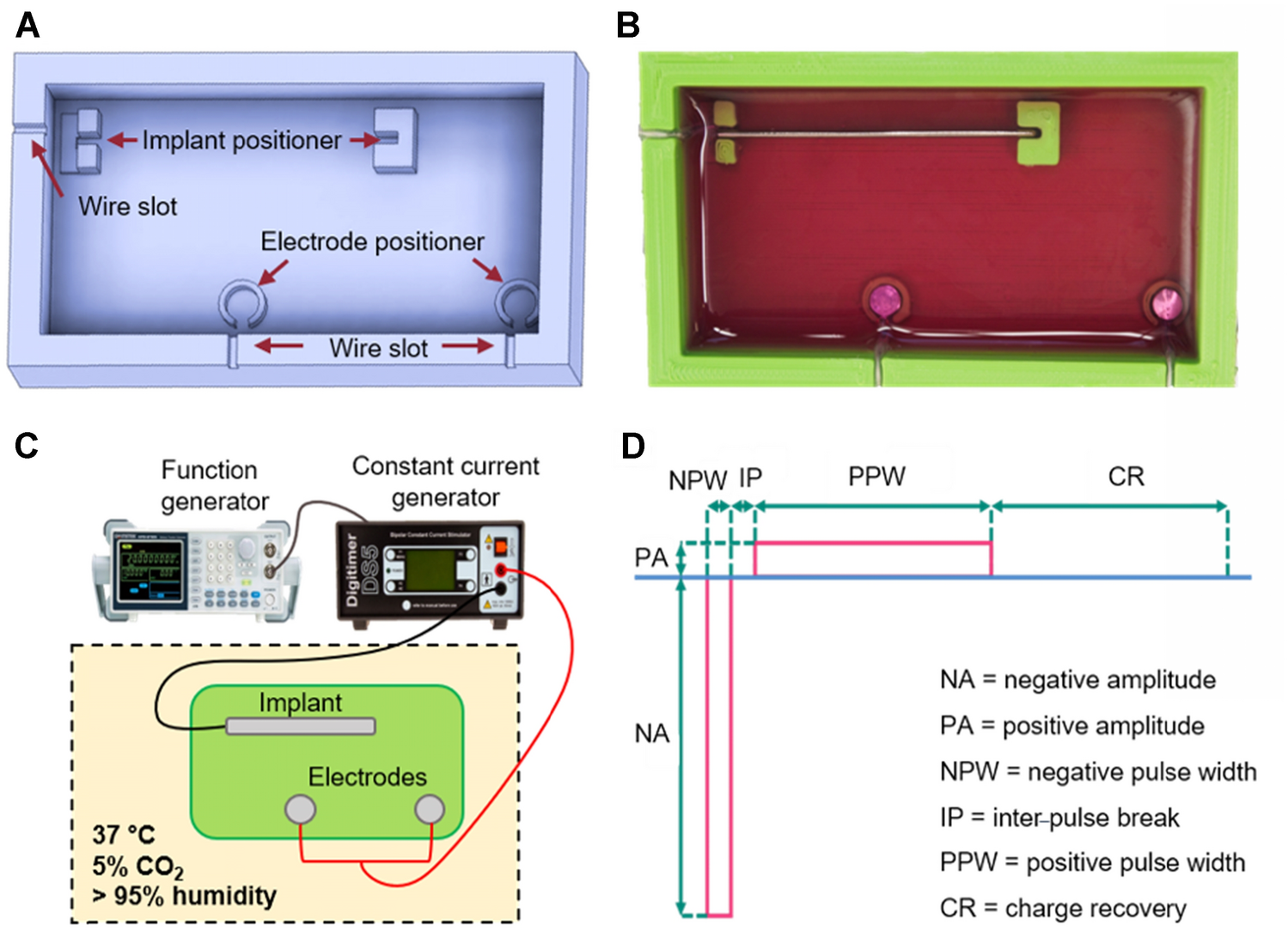

Experimental setup. (A) CAD sketch of the 3D-printed chamber where specific design features are indicated by arrows. (B) Photograph of the experimental setup during the experiments where the implant and electrodes are placed in their positioners and the chamber is filled with cell culture medium. (C) The experimental electrical circuit where the implant is the cathode while the electrodes function as anodes connected to the constant current generator, which in turn is connected to the function generator. (D) Pulse characteristics.
