Figure 1
From: A novel AlGaN/GaN heterostructure field-effect transistor based on open-gate technology

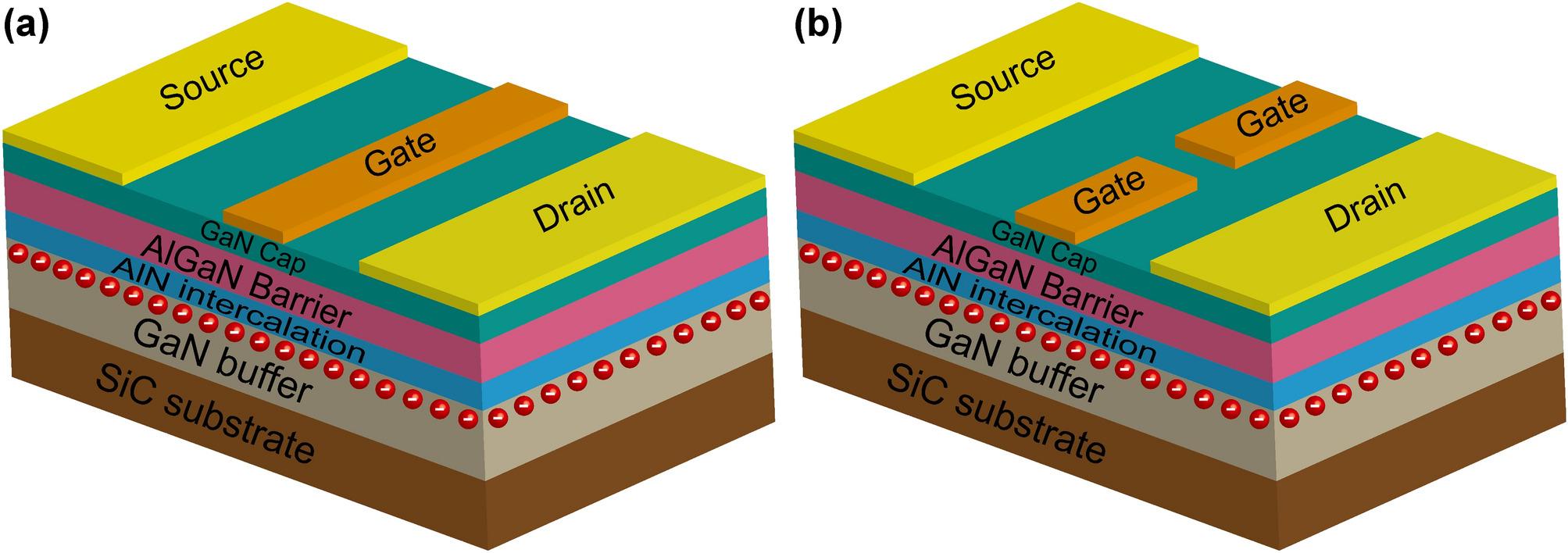

Schematic diagram of the structure of (a) normal device and (b) open-gate device. The figure was generated by Adobe Illustrate CC 2019 (https://www.adobe.com/cn/products/illustrator.html).
