From: The influence of gravity on respiratory kinematics during phonation measured by dynamic magnetic resonance imaging

Figure 6

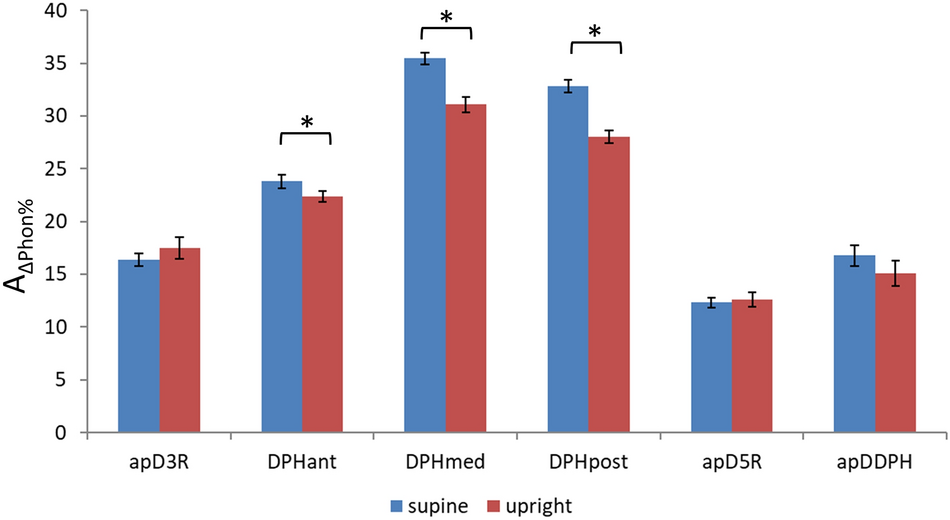

Larger cranial diaphragm displacement during supine compared to upright phonation. Y-axis shows the percentual movement range (A∆Phon%) during phonation. Bars represent different locations in upright (red) and supine (blue) position including standard error. Significant differences are marked with *. All p-values are displayed in Supplementary Table S9 online.
