Figure 1
From: Superconductivity in In-doped AgSnBiTe3 with possible band inversion

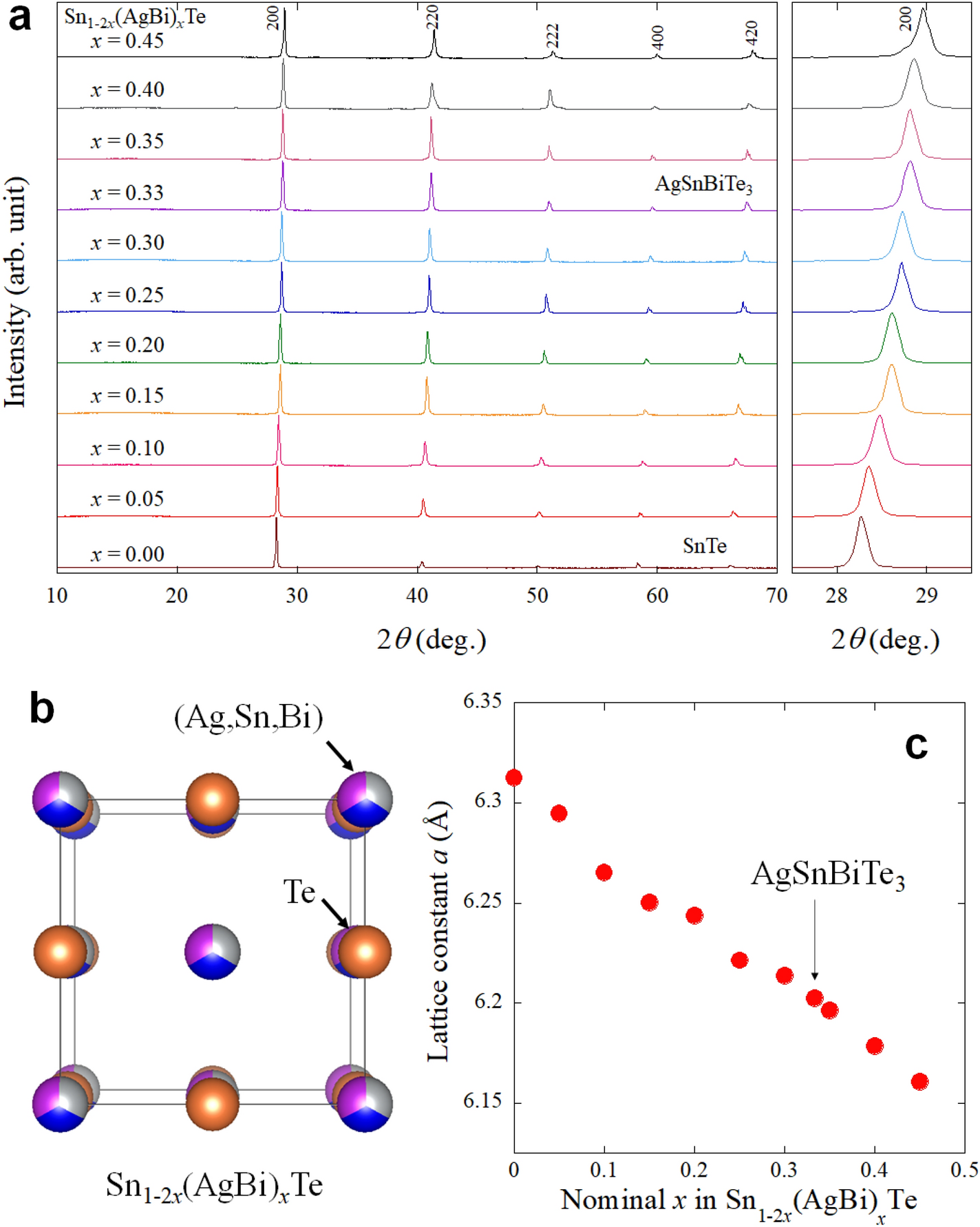

Crystal-structure evaluation of Sn1−2x(AgBi)xTe. (a) XRD patterns of Sn1−2x(AgBi)xTe. (b) Schematic image of the NaCl-type crystal structure of Sn1−2x(AgBi)xTe. (c) x dependence of the lattice constant.
