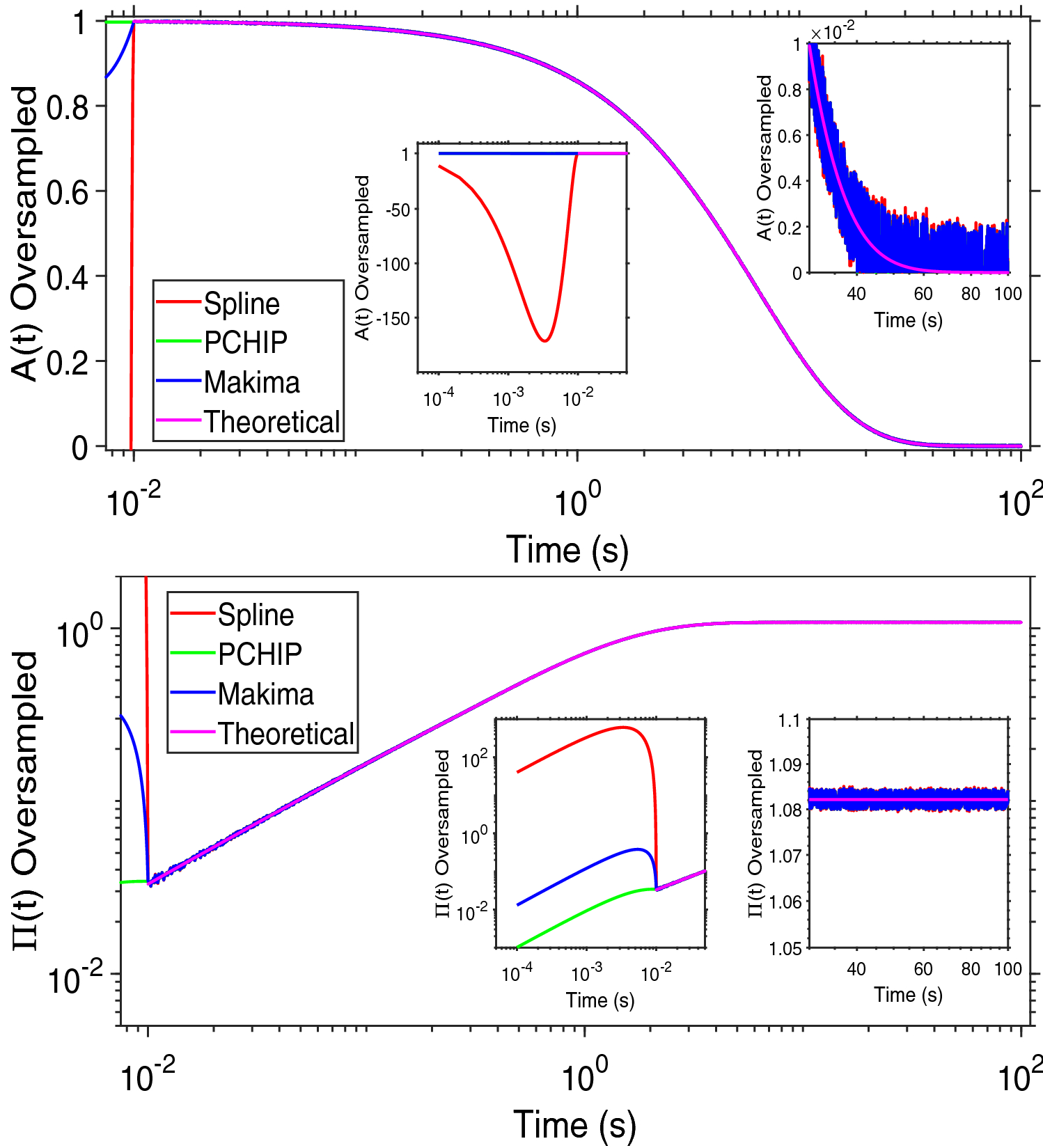

Figure 5
From: i-RheoFT: Fourier transforming sampled functions without artefacts
(Top) Eq. (2) and (bottom) Eq. (3) drawn as continuous (pink) lines by using \(10^4\) experimental points linearly spaced in time. A white noise having a SNR \(=50\) is added to the experimental data, which are then interpolated by means of three MATLAB built-in interpolation functions: Spline, PCHIP and Makima. The insets highlight the detrimental effects on the interpolation process due to the presence of noise, both at short and long time scales.
