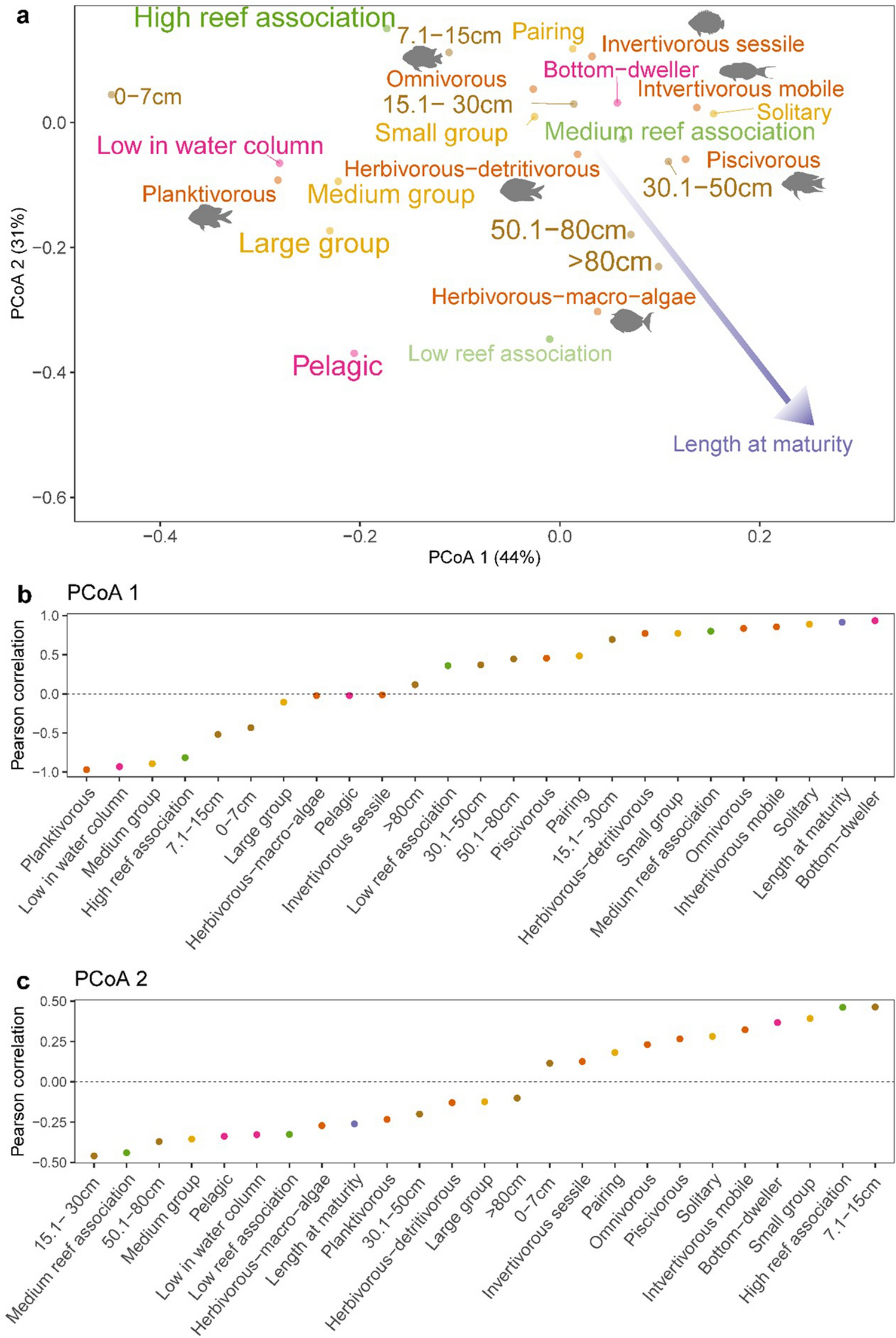

Figure 2
From: Decadal shifts in traits of reef fish communities in marine reserves
(a) Functional space of Kenyan marine parks across all sites and years spanning the chronosequence. Traits included: size, diet, gregariousness, position in the water column, reef association, length at maturity. Traits grouped by colour: purple = length at maturity, green = reef association, yellow = gregariousness, pink = position in the water column, brown = size, and orange = diet. A colour and size gradient are applied to each ordinal trait, increasing in size and opacity along the gradient. (b) Pearson correlation between community weighted mean values of trait categories and PCoA axis 1 and c) PCoA axis 2.
