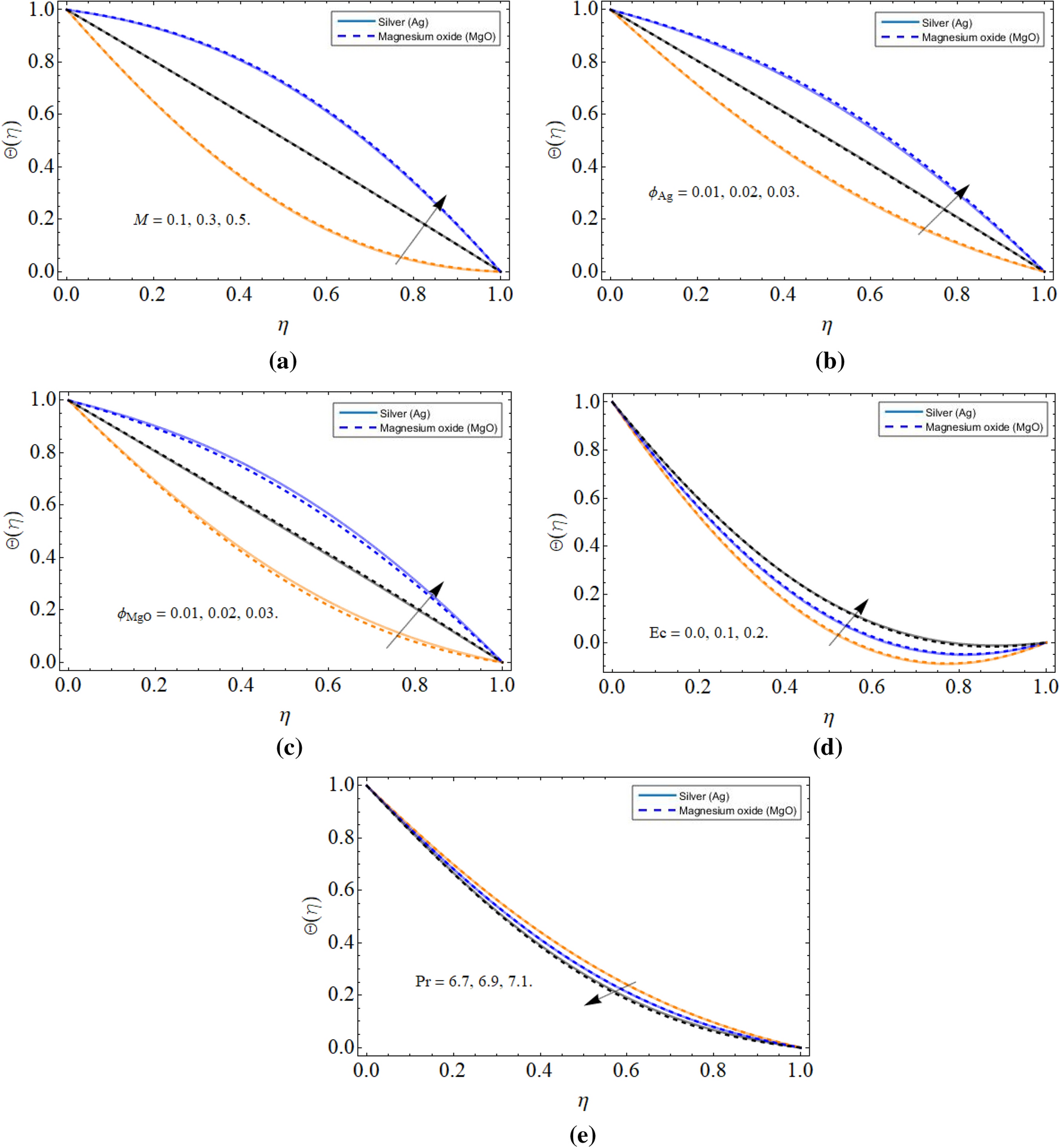

Figure 5

The behavior of thermal energy profile \(\Theta \left( \eta \right)\) versus (a) magnetic field M (b) volume friction of silver \(\phi_{Ag}\) (c) volume friction of magnesium oxide \(\phi_{MgO}\) (d) Eckert number Ec (e) Prandtl number Pr.
