Figure 4
From: COVID-19 vaccination strategies depend on the underlying network of social interactions

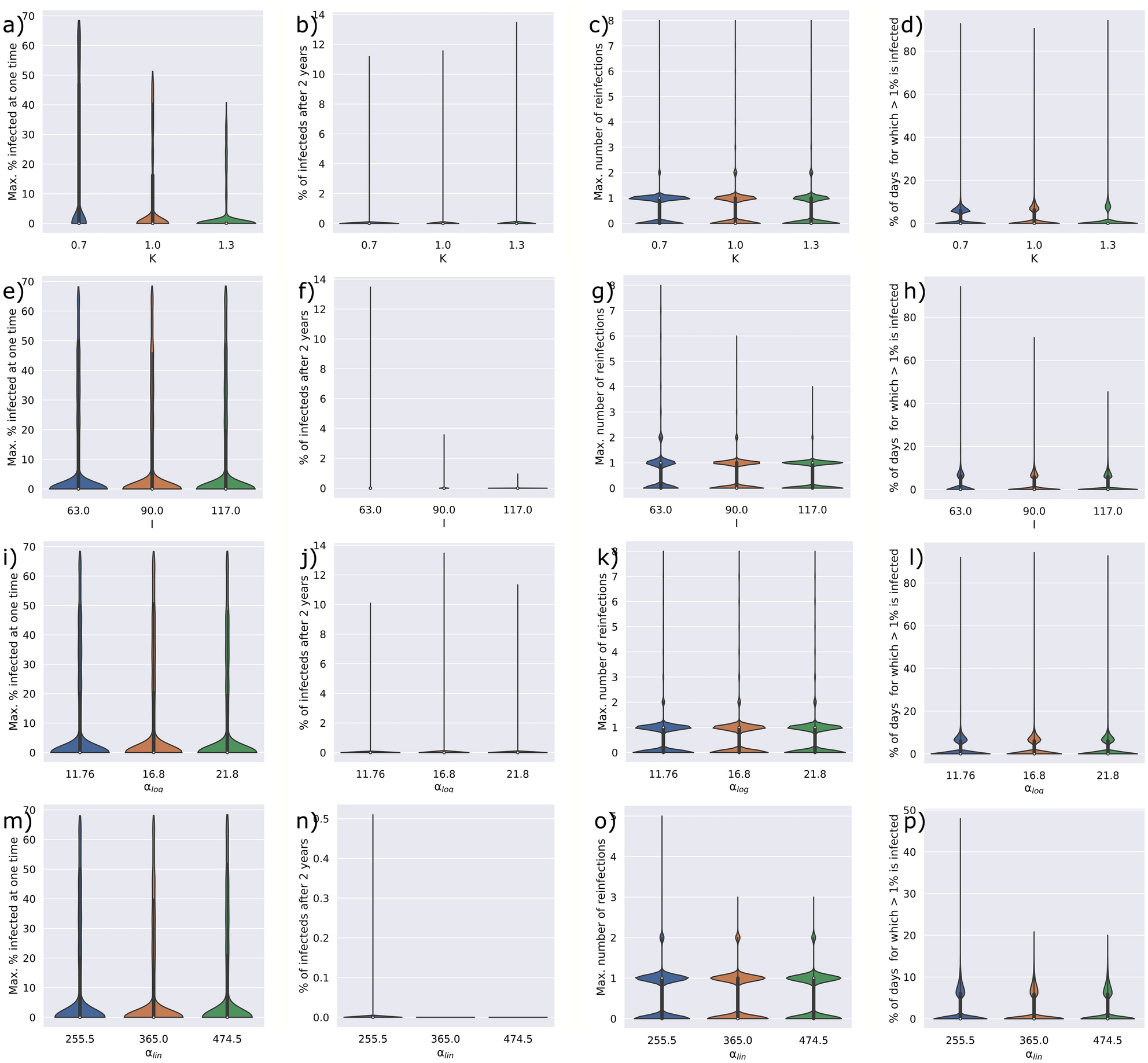

Parameter sensitivity analysis of the transmission factor—K (a–d), the immunity length—I (e–h), the logarithmic dampening—αlog (i–l), and the linear dampening—αlin (m–p). Default parameters were varied by ± 30% and the effect on the maximum percentage of the population infected at a time (a,e,i,m), the percentage of infected individuals after 2 years (b,f,j,n), the maximum number of reinfections (c,g,k,o), and the percentage of days for which more than 1% of the population is infected (d,h,l,p) is shown.
