Figure 2
From: The spin-dependent properties of silicon carbide/graphene nanoribbons junctions with vacancy defects

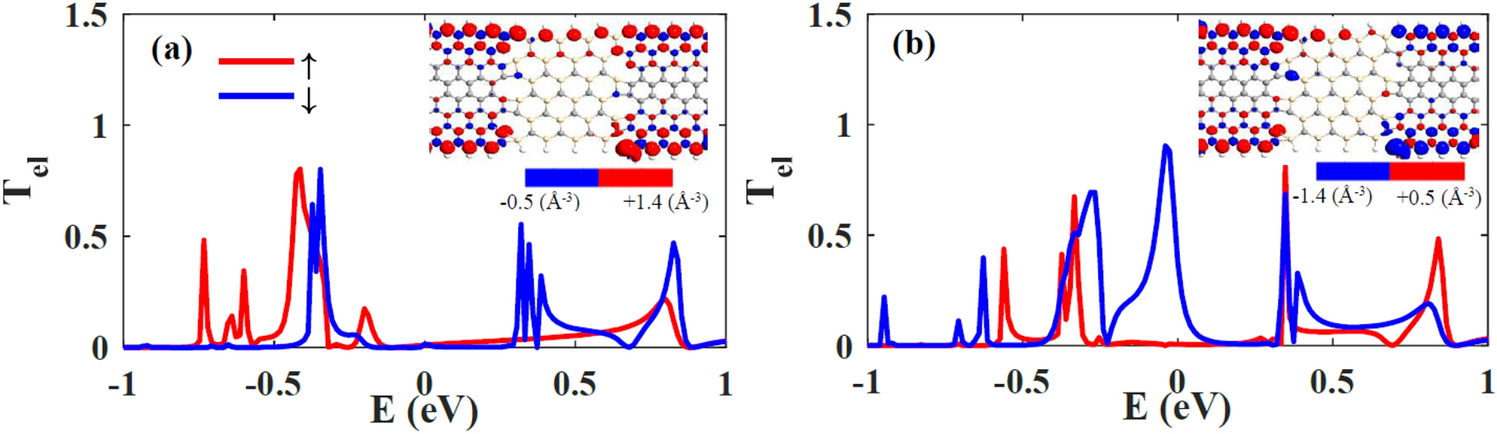

The spin-up (red lines) and spin-down (blue lines) electron transmission coefficients of SiCNR in (a) P and (b) AP configurations. The insets show the spin density diagram of the junction. Red (blue) color represents the spin-up (-down) density and the mean values of spin densities are given in the scroll bar at the bottom of the diagrams.
