Figure 4
From: Prediction of steady flows passing fixed cylinders using deep learning

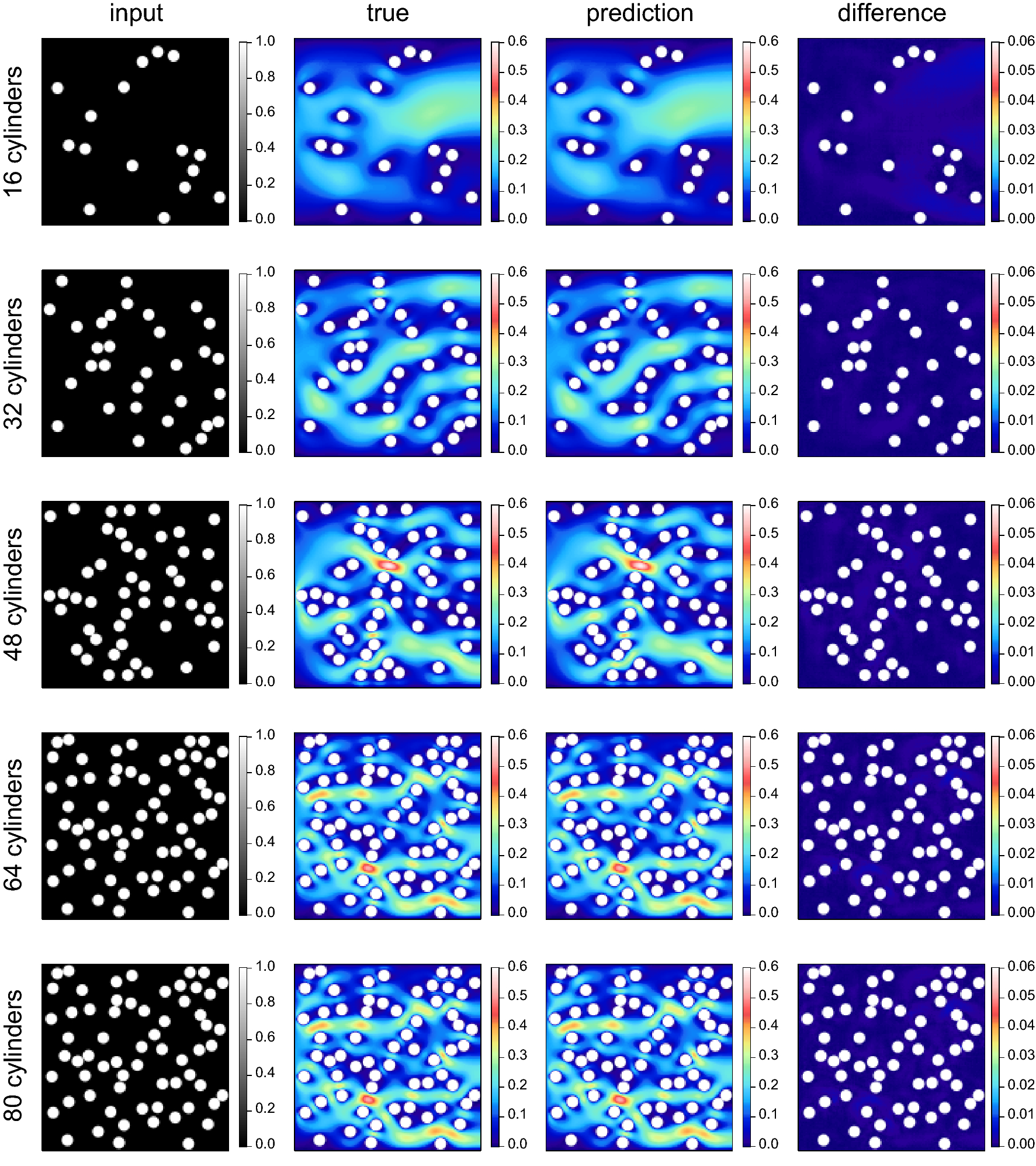

Comparison of the true and predicted velocity fields for unknown cylinder systems that are not learned in the training and validation datasets. The leftmost column shows the input data (the smoothed profile function \(\phi\)). The rest, from left to right, show the magnitude of the true velocity, predicted velocity, and difference between the true and predicted velocities. The rows from top to bottom respectively show the results for the systems with 16, 32, 48, 64, and 80 cylinders. To make the cylinder position easier to see, the velocity values defined in the cylinder domain are shown in white.
