Figure 6
From: Prediction of steady flows passing fixed cylinders using deep learning

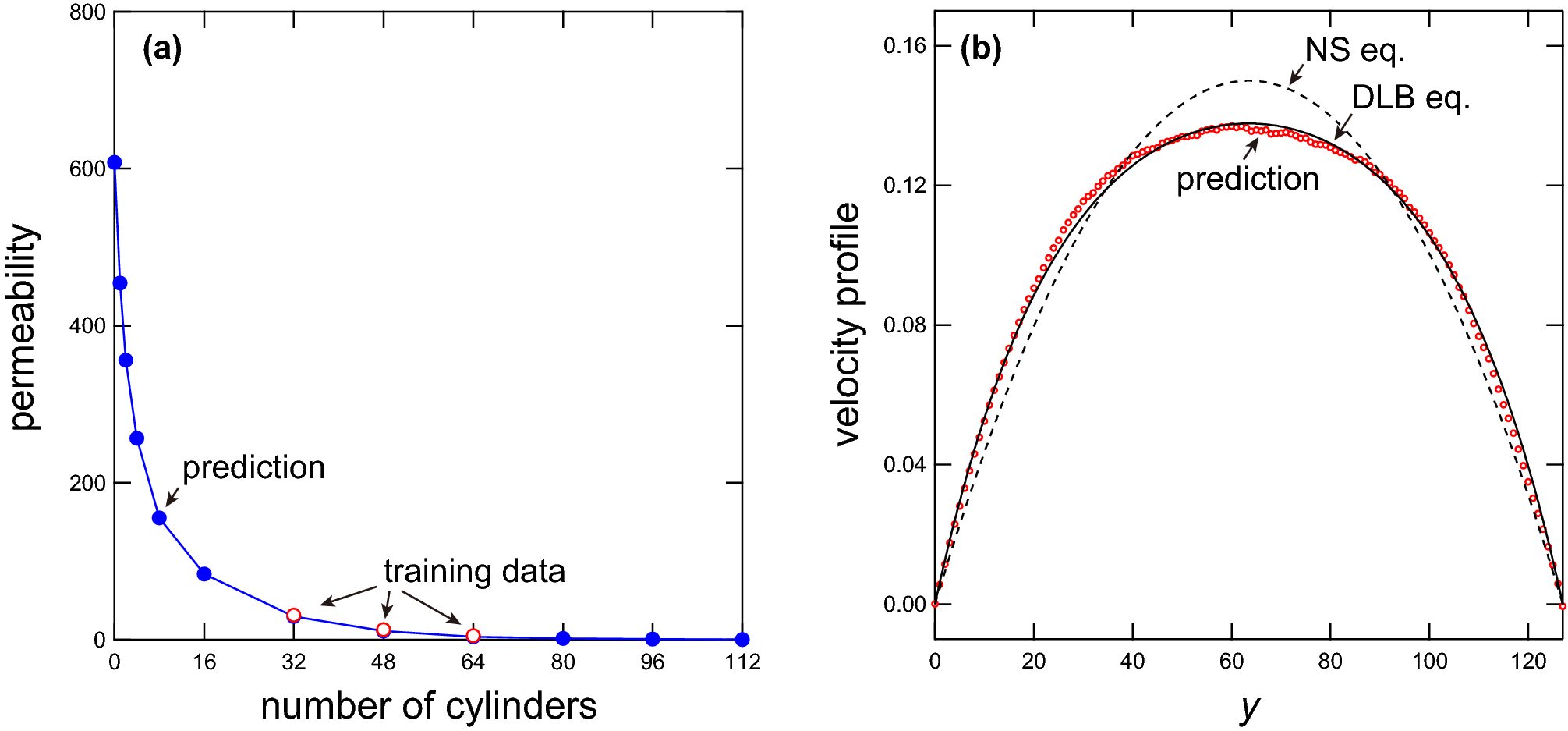

(a) Permeability k as a function of the number of cylinders. Red open and blue closed symbols indicate the permeabilities obtained from the training data and prediction, respectively. (b) Velocity profile predicted using the present model when the cylinders are not present (red symbols). The solid line indicates the velocity profile obtained using the DLB equation with the permeability \(k \simeq 608\) (see Eq. 17). The dashed line indicates the velocity profile obtained using the NS equation (see Eq. 14).
