Figure 5 | Scientific Reports

Figure 5

From: Molecular surveillance of pneumococcal carriage following completion of immunization with the 13-valent pneumococcal conjugate vaccine administered in a 3 + 1 schedule

Figure 5

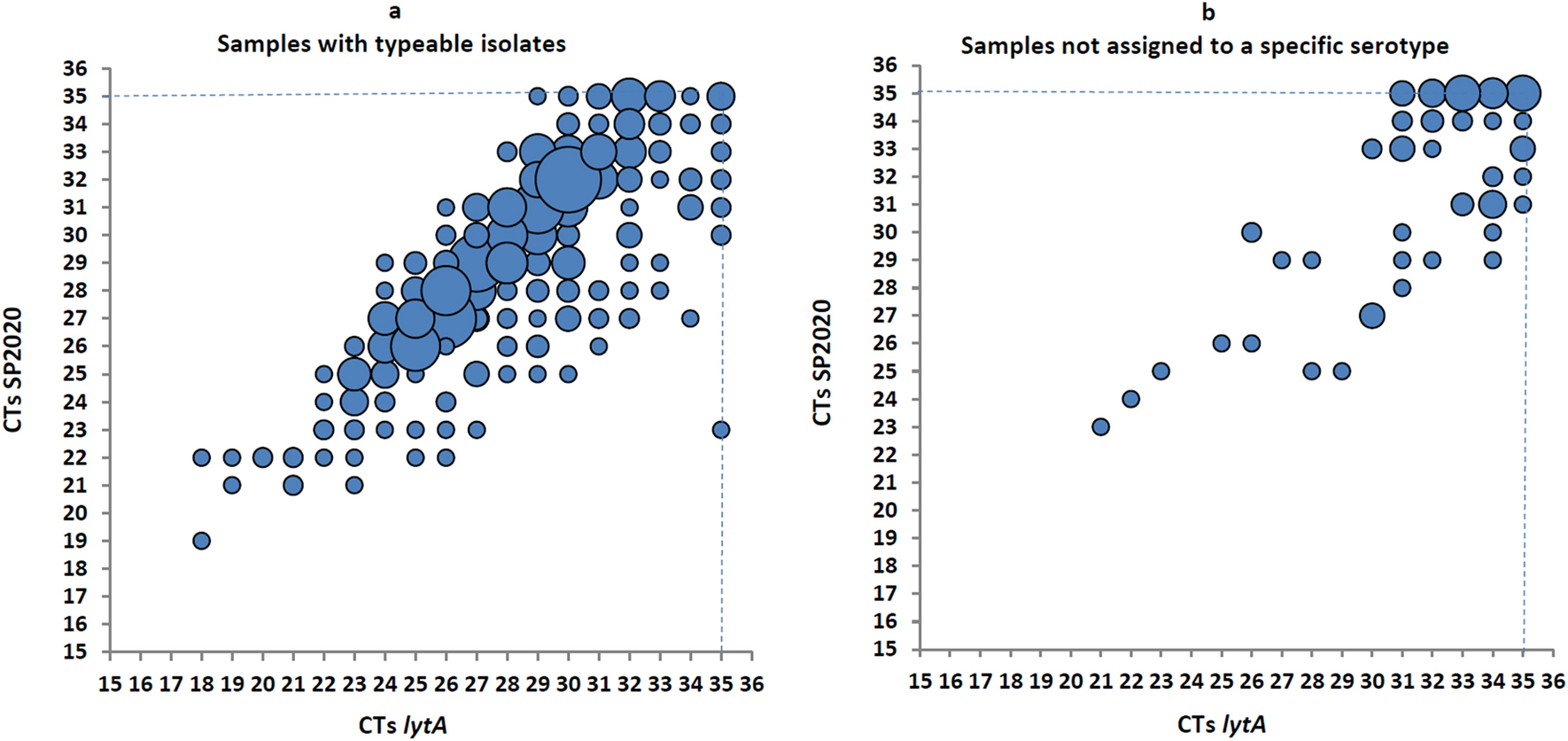

Samples tested positive for both genes: typeable (n = 424) (a) and samples not assigned to a specific serotype (n = 84) (b). Each blue circle indicates the CT values of samples tested positive for both lytA and SP2020 genes. The size of the blue circles (‘bubbles’) is proportionate to the number of samples which presented with the specific CT combination.
