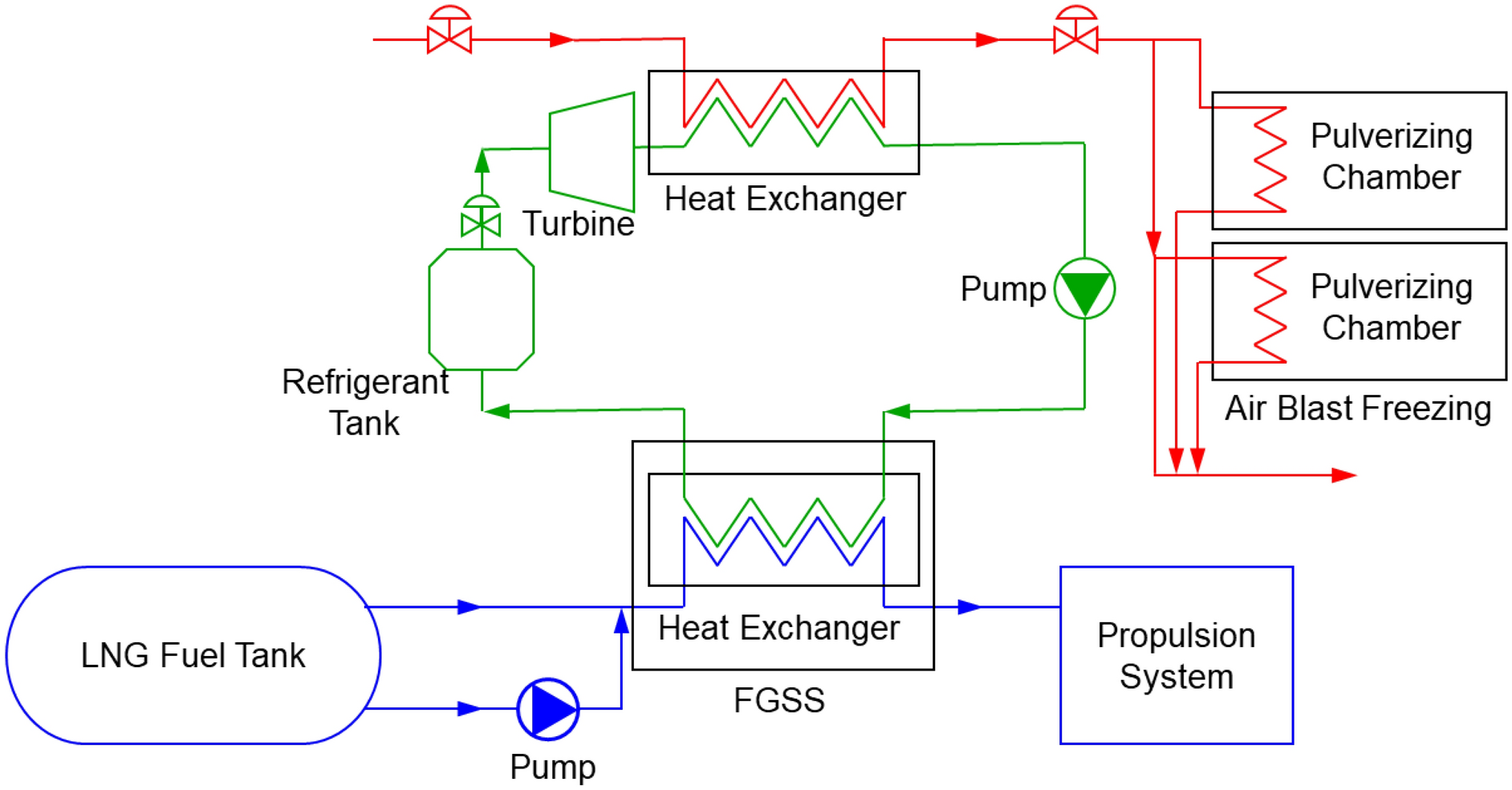

Figure 2
Schematic diagram of proposed LNG-fueled propulsion system with LTP. It contains the LNG propulsion part (blue line), EGW system (green line), and pulverizing chamber with an air-blast freezing system (red line).
