From: Modelling a new approach for radio-ablation after resection of breast ductal carcinoma in-situ based on the BAT-90 medical device

Figure 8

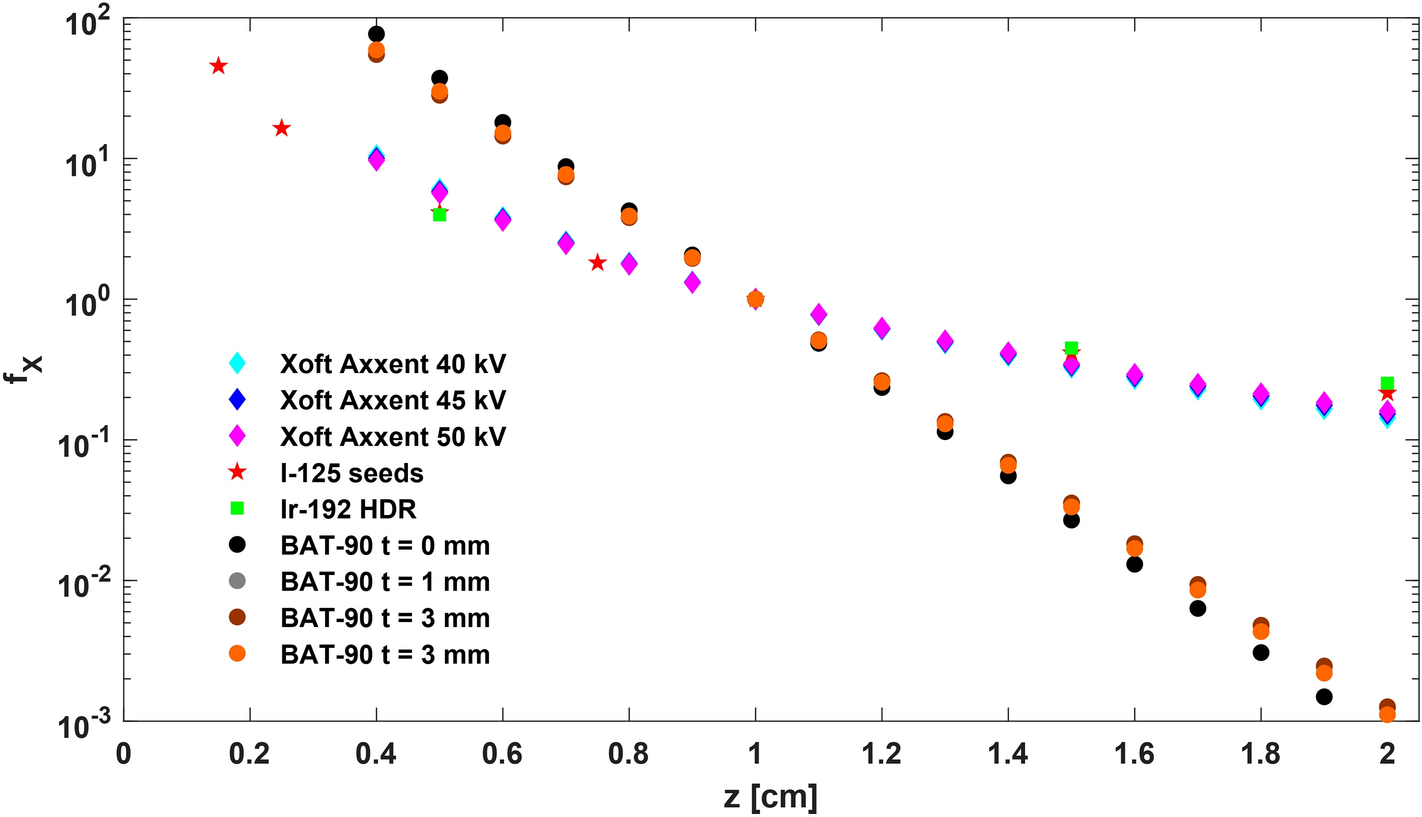

source X along the transversal axis. It includes the absorption, the scatter and the geometrical distribution of the radioactive material. The sources considered are Xoft Axxent at 40 kV, 45 kV and 50 kV (light blue, blue and magenta diamond), I-125 seeds implants (red pentagram), Ir-192 HDR (green square) and BAT-90 with t = 0 mm, t = 1 mm, t = 3 mm and t = 5 mm (black, grey, brown and orange circle).
