Figure 3 | Scientific Reports

Figure 3

From: Enhanced glucose metabolism through activation of HIF-1α covers the energy demand in a rat embryonic heart primordium after heartbeat initiation

Figure 3

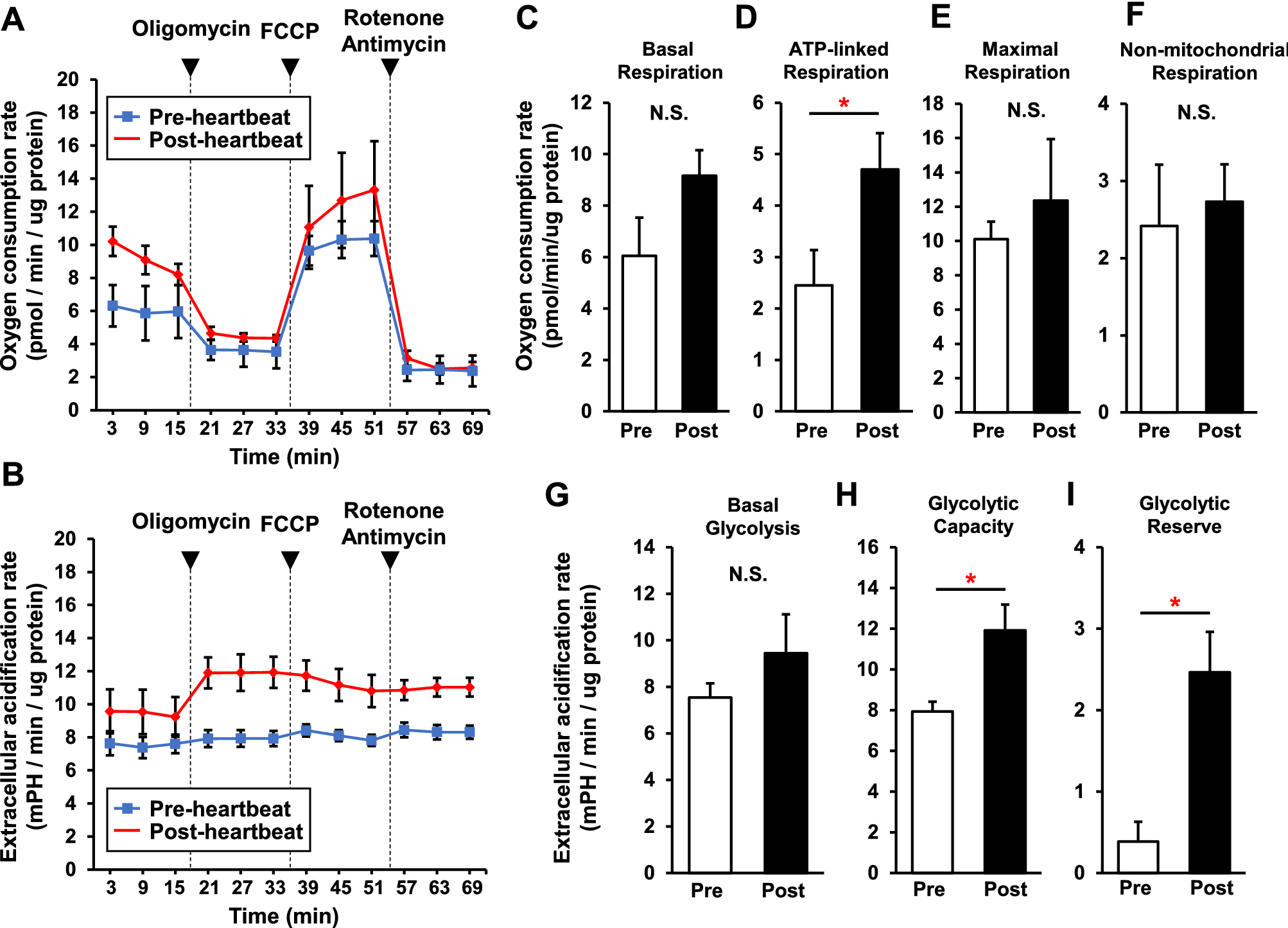

Increased glycolytic capacity and ATP synthesis-linked mitochondrial respiration in the heart primordium after heartbeat initiation. Analysis of OCR and ECAR was carried out using a Seahorse XFe96 Bioanalyzer to assess mitochondrial respiration and glycolysis. (A,B) OCR (A) and ECAR (B) were measured in isolated cells from the heart primordium in the pre- and post-heartbeat groups (N = 5) with subsequent addition of oligomycin (complex V inhibitor), FCCP (a protonophore), and rotenone (complex I inhibitor)/antimycin A (complex III inhibitor). (C) Mitochondrial bioenergetic parameters calculated from the results for OCR in the pre- and post-heartbeat groups. (D) Glycolytic parameters calculated from the results for ECAR in the pre- and post-heartbeat groups. *p < 0.05 with Welch's t-test. N.S.: not significant.
