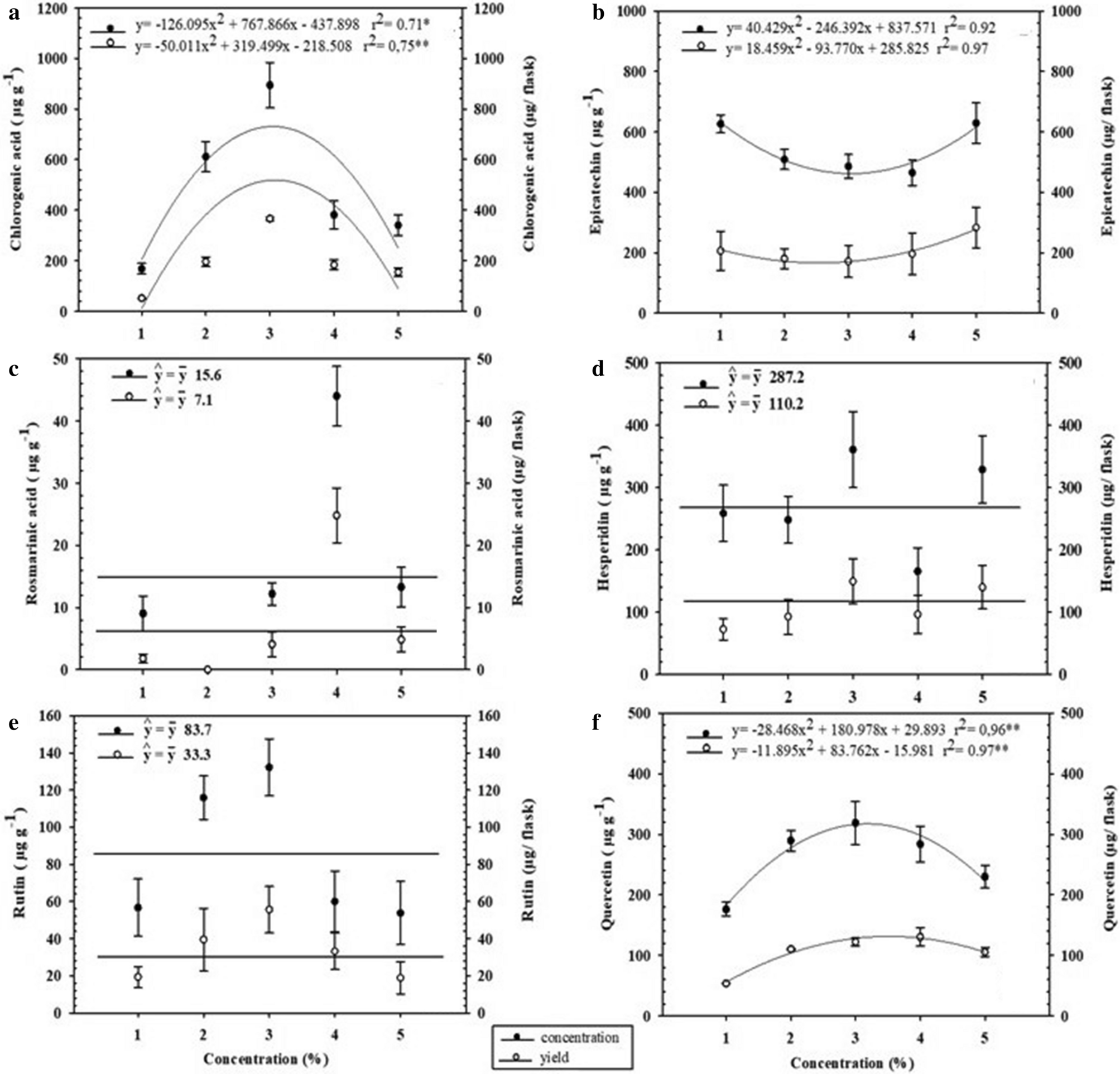

Figure 10

Concentration and yield of chlorogenic acid (a), epicatechin (b), rosmarinic acid (c), hesperidin (d), rutin (e) and quercetin (f) of the cell-suspension cultures of H. speciosa (Gomes) supplemented with different concentrations. The bars indicate the standard error of the mean.
