Figure 5
From: Gut dysbiosis is associated with acceleration of lupus nephritis

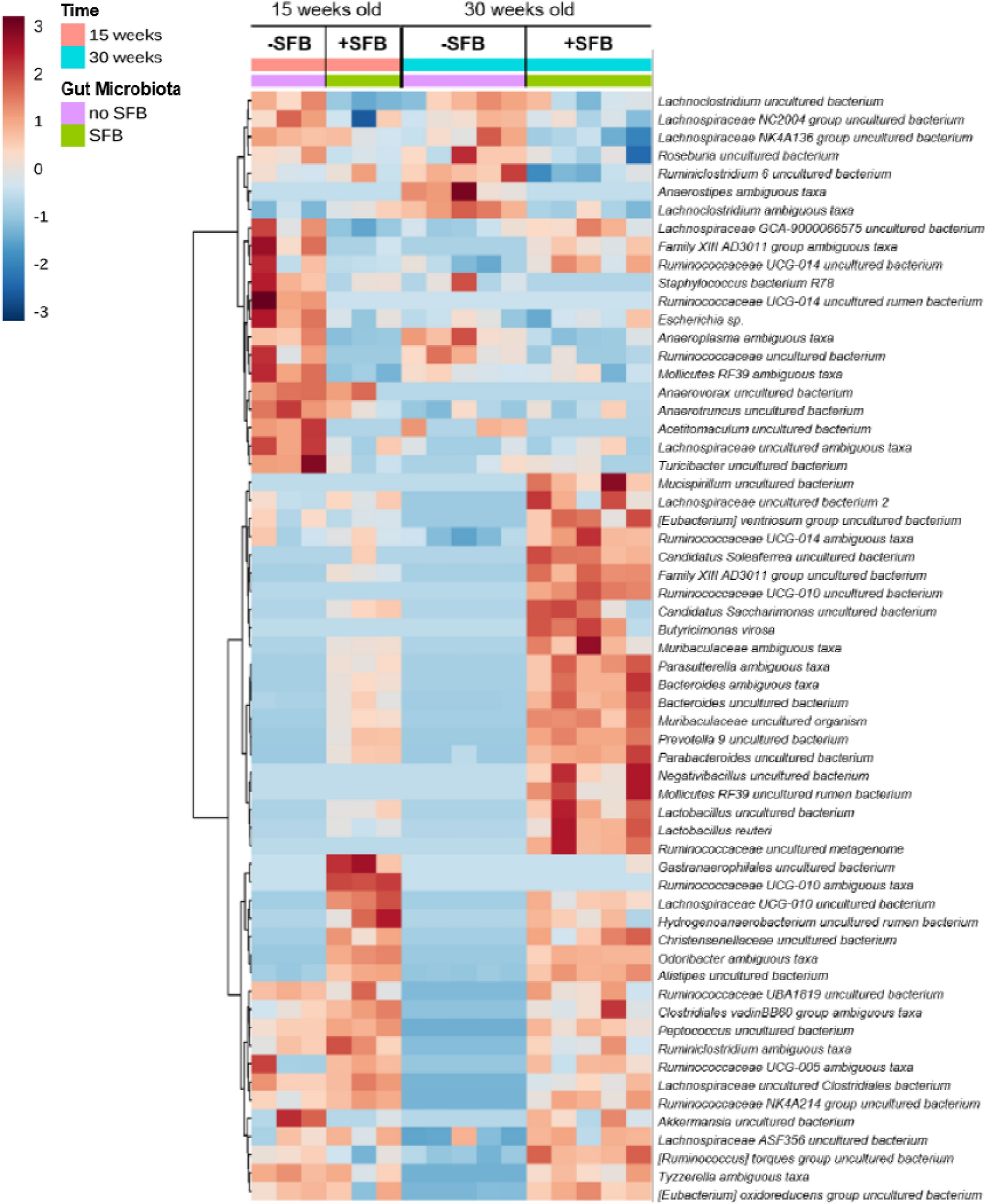

Hierarchical cluster analysis of statistically significant operational taxonomic units (OTUs) in each group based on the presence of SFB and time. Color intensity indicates Log2 normalized abundance of OTUs in each sample. Color coded bars at top indicate SFB status and time of sample collection.
