Figure 3
From: Multiple bacterial partners in symbiosis with the nudibranch mollusk Rostanga alisae

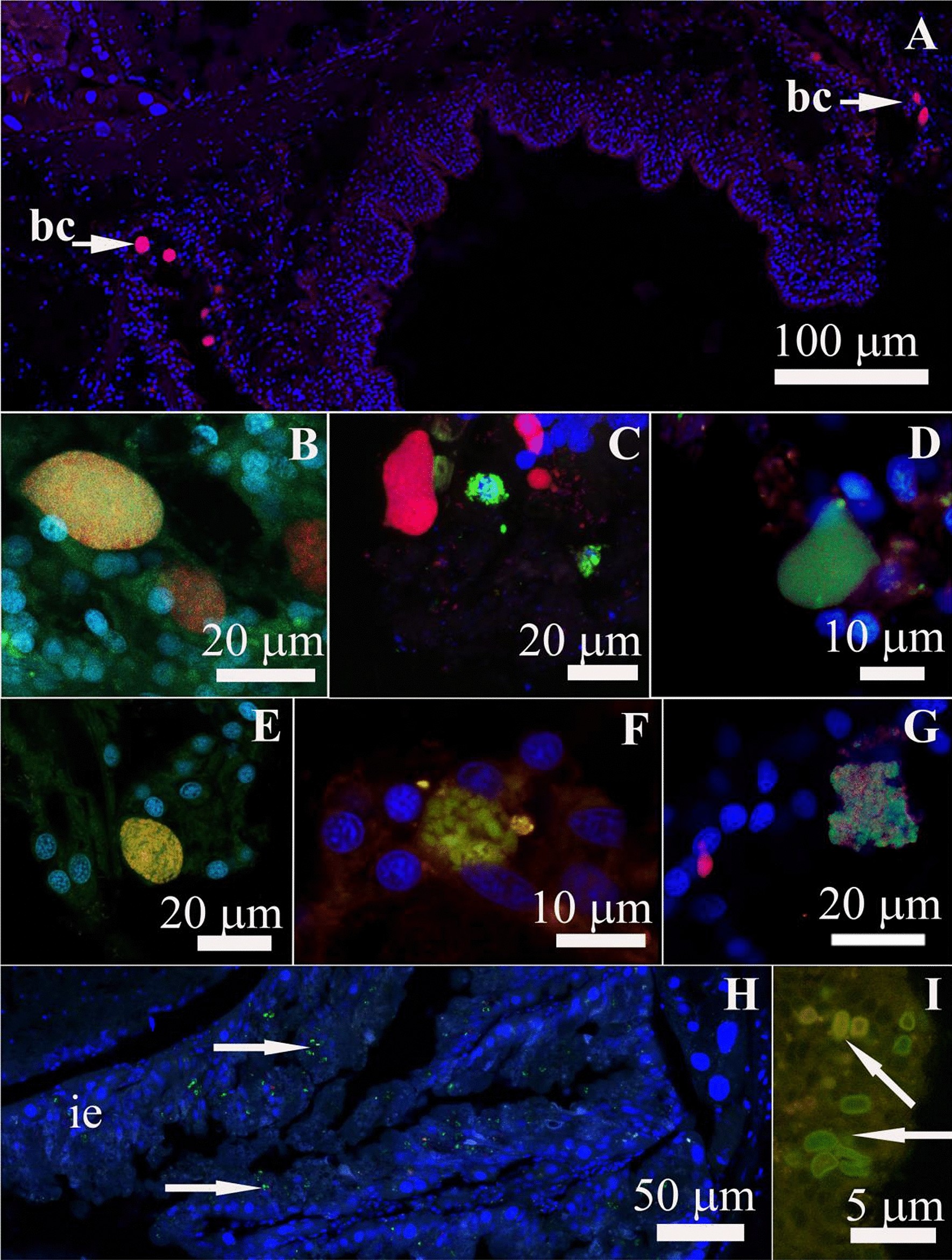

Fluorescent in situ hybridization microscopy of bacteria forming bacteriocytes (bc) in the epidermis and cyanobacteria in the intestinal epithelium of Rostanga alisae. (A) Accumulation of bacteriocytes (bc) in the skin fold between the foot and notum, transverse section of the body. Red fluorescence of bacteria hybridized with Cy3 universal UEB388 probe set. Green fluorescence of bacteria hybridized with bacteria-specific probes for (B) Achromobacter, (C) Stenotrophomonas, (D) Labrenzia, (E) Maritalea, (F) Bradyrhizobium, (G) Burkholderia, (H,I) Synechococcus (arrows). DNA stained with DAPI (blue fluorescence).
