Figure 5
From: Activity of vehicles in the bus rapid transit system Metrobús in Mexico City

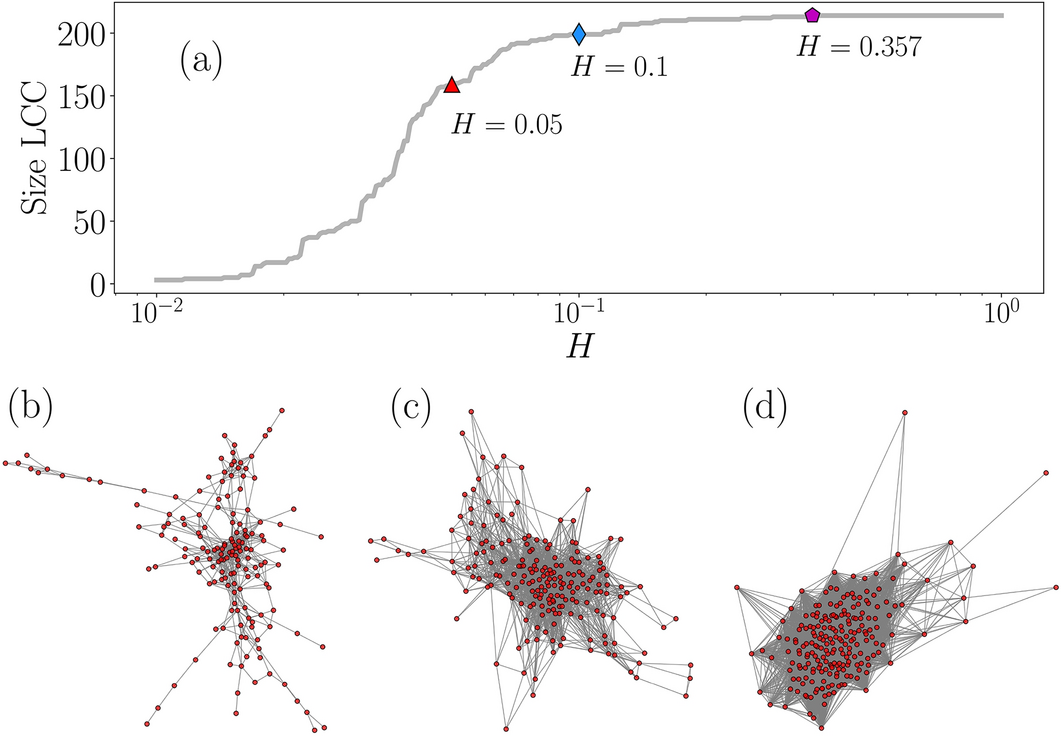

Similarity networks in the activity of vehicles in the BRT system Metrobús. (a) Size of the largest connected component (LCC) as a function of the threshold value H for the similarity between segments. Three particular LCCs obtained for \(H=0.05\), \(H=0.1\) and \(H=0.357\) are presented in panels (b)–(d), respectively. \(H=0.357\) is the lowest value of H that produces a connected network including the 214 segments. All figures were created using python 3.8 and the matplotlib (3.4.3) package (https://matplotlib.org). Networks in panels (b)–(d) were created using the networkx (2.6.3) package (https://networkx.org).
