Figure 7
From: Activity of vehicles in the bus rapid transit system Metrobús in Mexico City

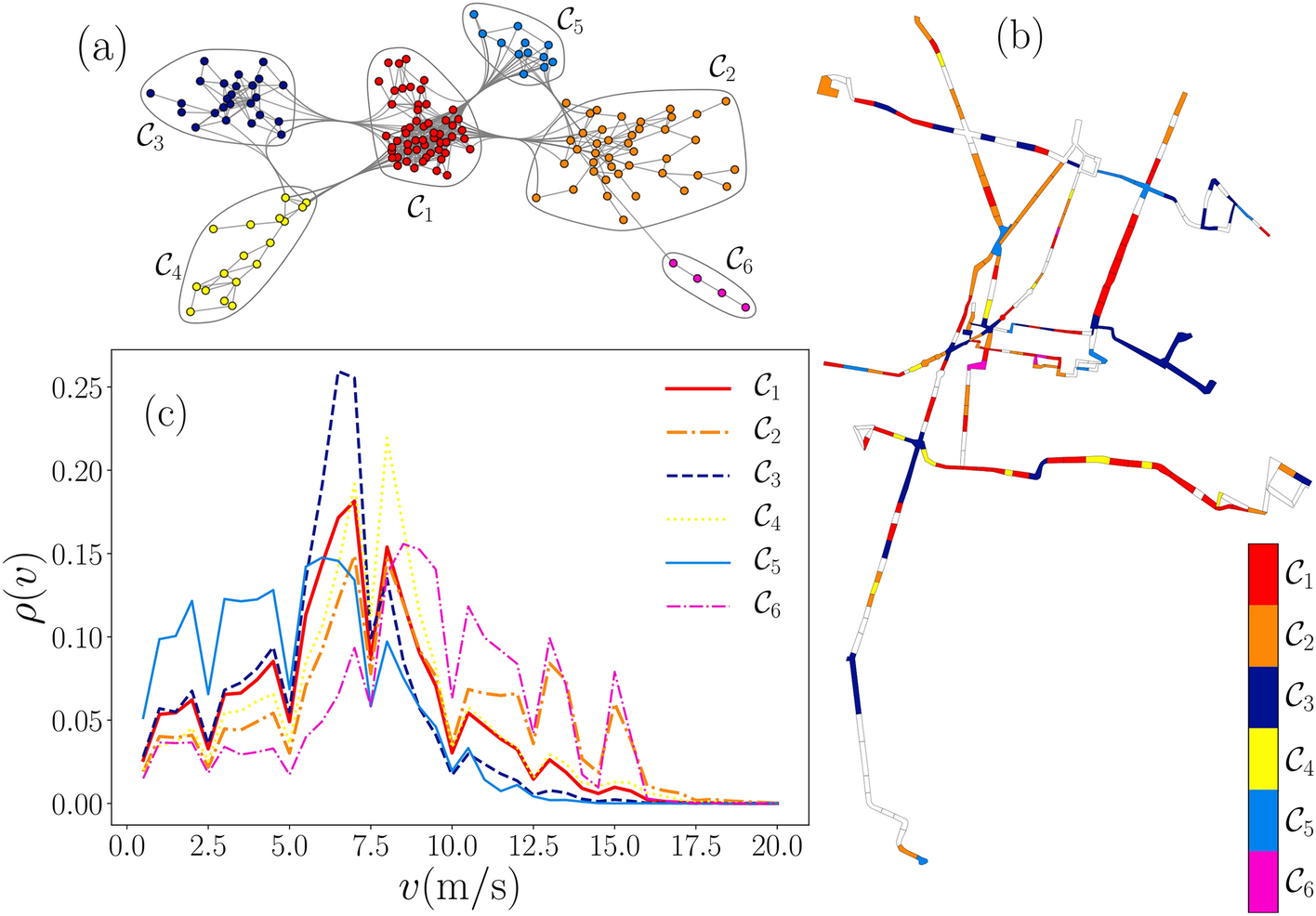

Segment classification through similarity networks with \(H=0.05\). (a) Largest connected component for a similarity network with communities \({\mathscr {C}}_l\) (\(l=1,2,\ldots ,6\)) represented with different colors. (b) Segments map with the representation of communities. (b) Probability densities \(\rho (v)\) for all the values in the segments in each community. The network in panel (a) was generated using Mathematica 12.3.1 (https://www.wolfram.com/mathematica/). Figures (b)–(c) were created using python 3.8 and the matplotlib (3.4.3) package (https://matplotlib.org). The map in panel (b) was created using the geopandas (0.10.2) package (https://geopandas.org).
