Figure 4
From: Dynamics of camel and human hemoglobin revealed by molecular simulations

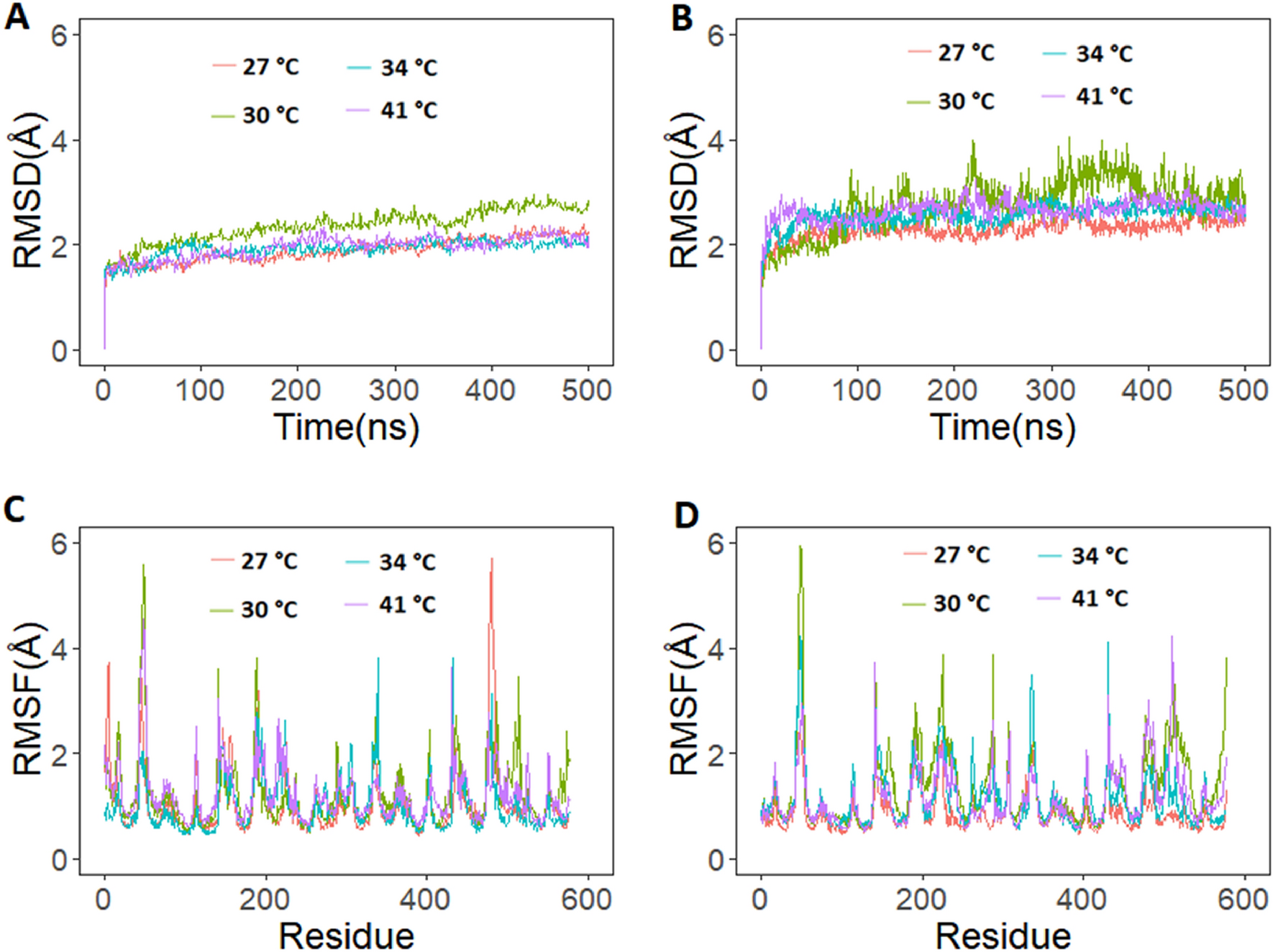

Root mean square standard deviation (RMSD) and root mean square fluctuation (RMSF) from 500 ns runs of camel and human hemoglobin simulation at different temperature conditions. (A) RMSD of camel hemoglobin backbone atoms; (B) RMSD of human hemoglobin backbone atoms; (C) RMSF of camel hemoglobin Cα atoms and, (D) RMSF of human hemoglobin Cα atoms. The residue number used in the RMSF plots uses a sequential combination of α1 (1–141), β1 (142–287), α2 (288–428), and β2 (429–574) based on the PDB structure. Graphs were plotted using R version 4.0.5 (https://www.r-project.org).
