Figure 2

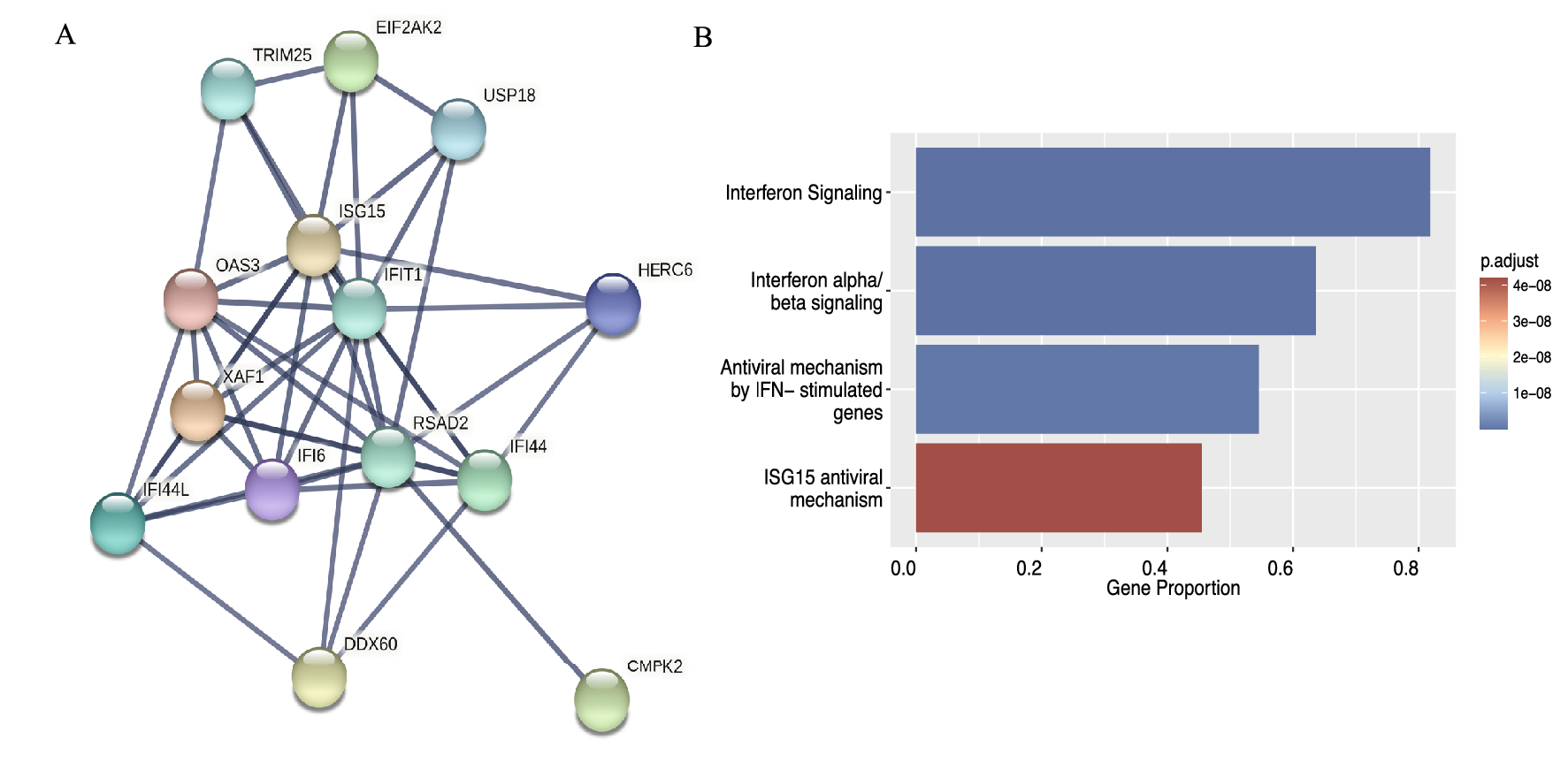

Protein Interactions and Pathways Enrichment for genes protective for viral rebound. (A) Visualisation of the Protein–Protein Interaction network of key genes within Module 1 using STRING for cross-validation of hub genes identified through GS and MM scoring. (B) Pathways enrichment bar plot identified using STRING and the Reactome database. The proportion of hub genes to pathway genes is shown on x-axis.
