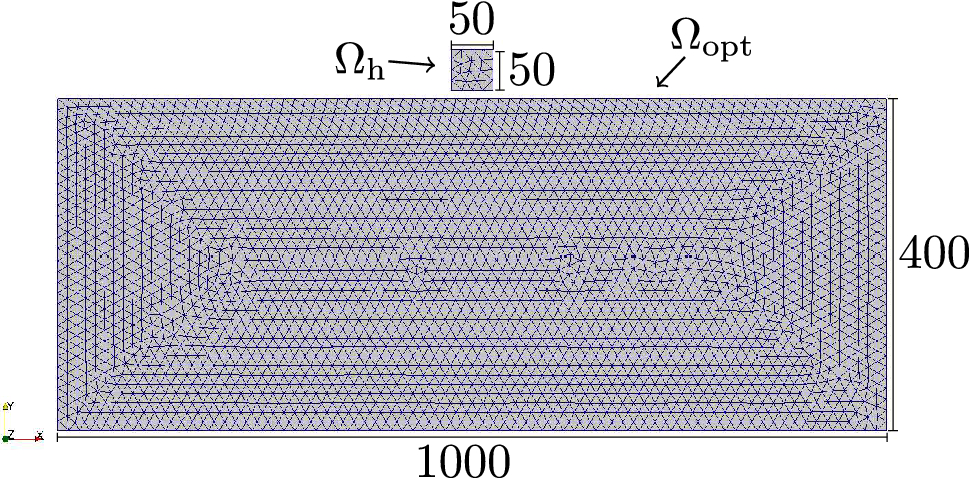

Figure 1

Mesh and geometry used for the numerical experiments. Dimensions are given in µm. The thickness (z-dimension) of the thin film is 12.5 µm. The field box \(\Omega _\text {h}\) consists of 91 cells and the optimization region \(\Omega _{\text {opt}}\) consists of 16505 cells.
