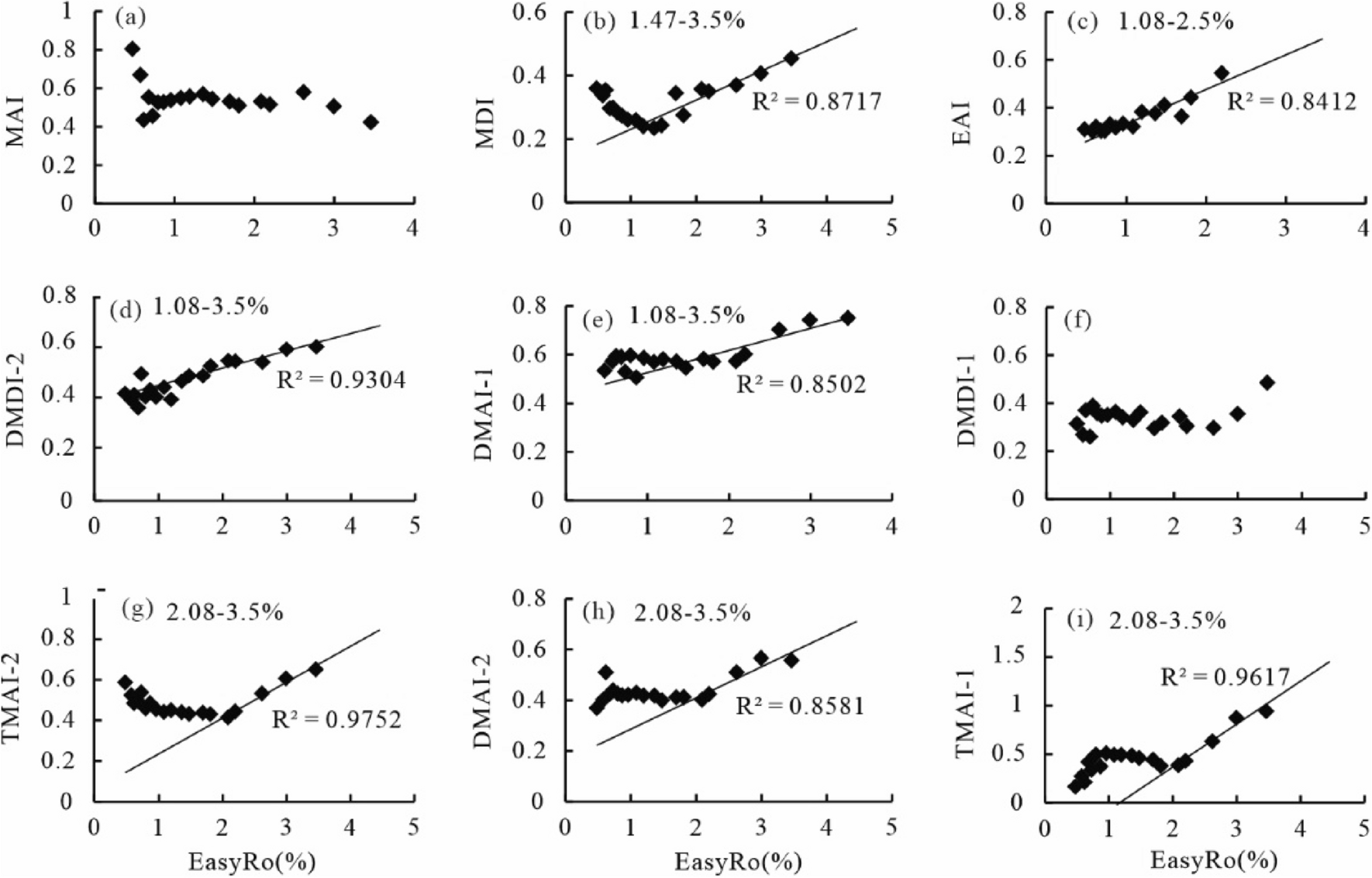

Figure 7
Plots showing the variation of diamondoid indices (MAI, MDI, DMAI-1, DMAI-2, DMDI-1, EAI, TMAI-1 and TMAI-2) with EasyRo (%) from anhydrous and hydrothermal pyrolysis of oil. MAI = 1-MA/(1-MA + 2-MA), MDI = 4-MD/(4-MD + 1-MD + 3-MD), DMAI-1 = 1,3-DMA/(1,2-DMA + 1,3-DMA), DMAI-2 = 1,3-DMA/(1,2-DMA + 1,4-DMA), DMDI-1 = 3,4-DMD/(4,9-DMD + 3,4-DMD), DMDI-2 = 4,8-DMD/(4,9-DMD + 4,8-DMD), EAI = 2-EA/(1-EA + 2-EA), TMAI-1 = 1,3,5-TMA/(1,3,5-TMA + 1,3,4-TMA), TMAI-2 = 1,3,5-TMA/(1,3,5-TMA + 1,3,6-TMA).7.
