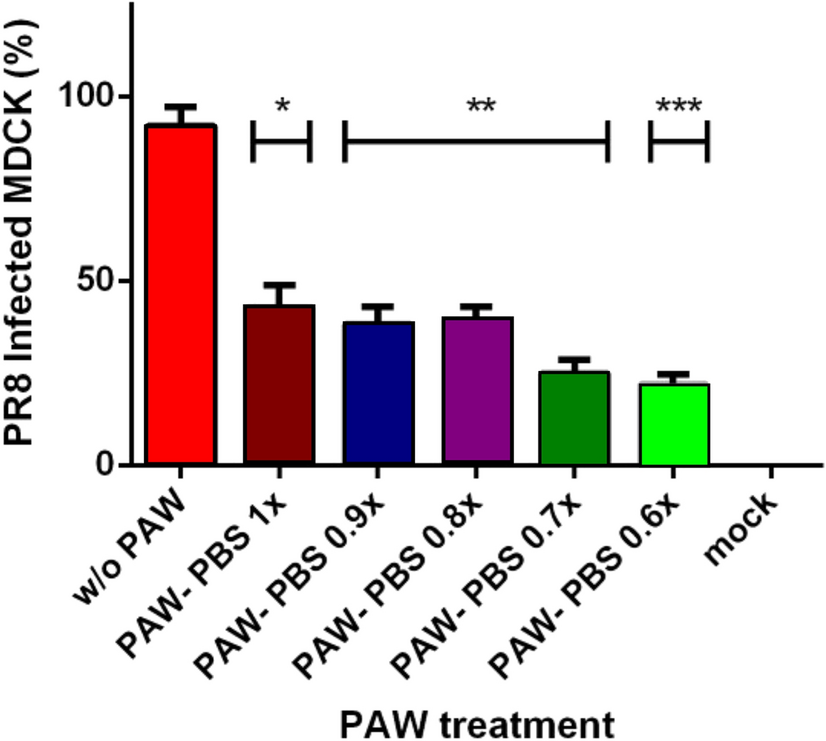

Figure 6
From: Vulnerability of SARS-CoV-2 and PR8 H1N1 virus to cold atmospheric plasma activated media
Counting of infected cells with PR8 without and with different PAW-PBS dilutions. Cells were infected with a MOI of 0.25 for 1 h, then submitted to the different treatments, and led the progression of the infection for 24 h. Immunofluorescence was carried out as described in methods and final counting of infected cells versus non-infected cells. Infection was reduced by more than a half (53%) with the lowest dilution of PAW-PBS used (90%PAW-0.1x PBS). Statistical analysis was carried out using unpaired t test (*p<0.05, **p<0.009, ***p<0.0004). Generated with INSKAPE 1.1 (www.inkscape.org).
